MX-5 Miata L4-2.0L (2008)
Cowl Moulding / Trim: Service and Repair

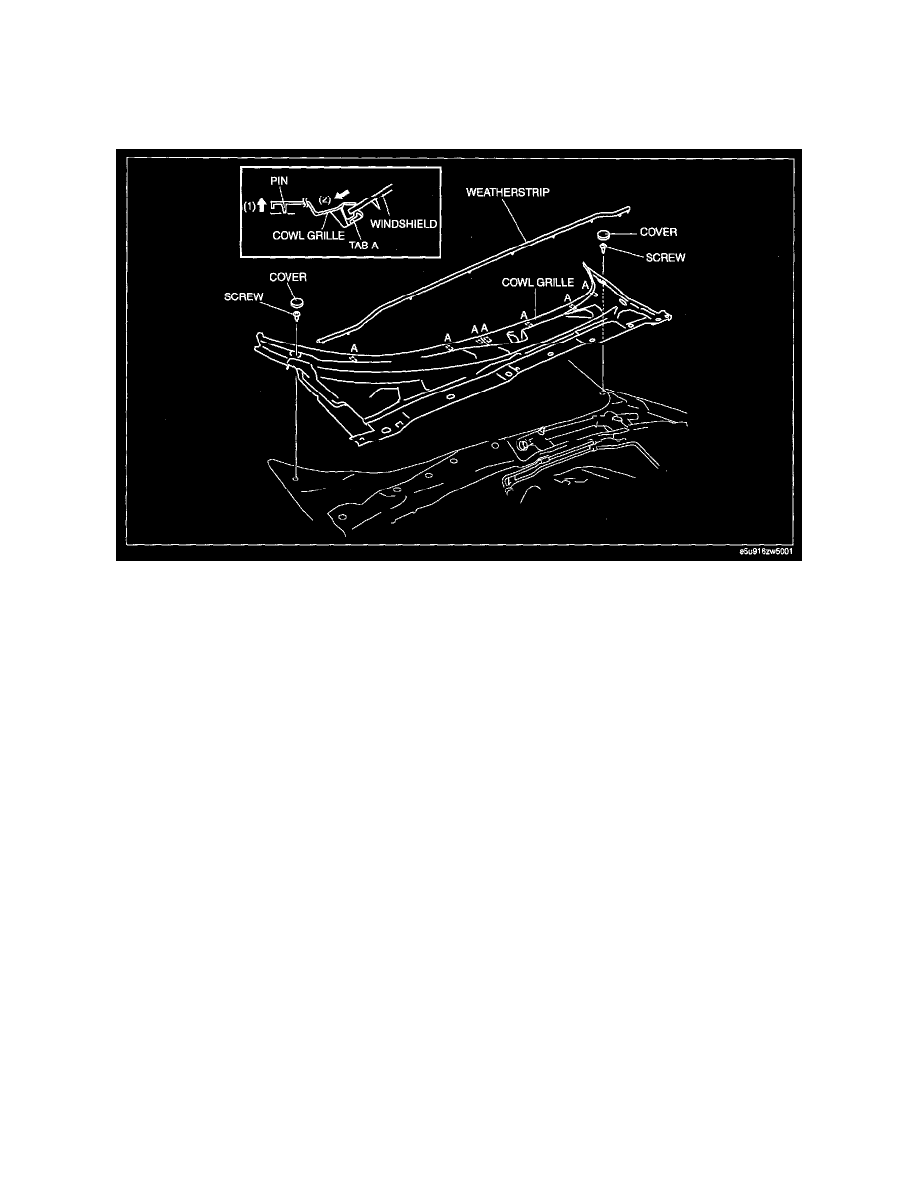

Cowl Grille Removal/Installation
COWL GRILLE REMOVAL/INSTALLATION
1. Remove the windshield wiper arm and blade.
2. Remove the covers.
3. Remove the screws.
4. Remove windshield washer hose from cowl grille.
5. Remove the weatherstrip.
6. Pull the cowl grille in the direction of arrow (1) so that it is free from the pins, pull tabs A in the direction of arrow (2), and then remove the front
window glass.
7. Remove the cowl grille.
8. Install in the reverse order of removal.
