MX-6 L4-2184cc 2.2L SOHC Turbo F2 (1989)
6.

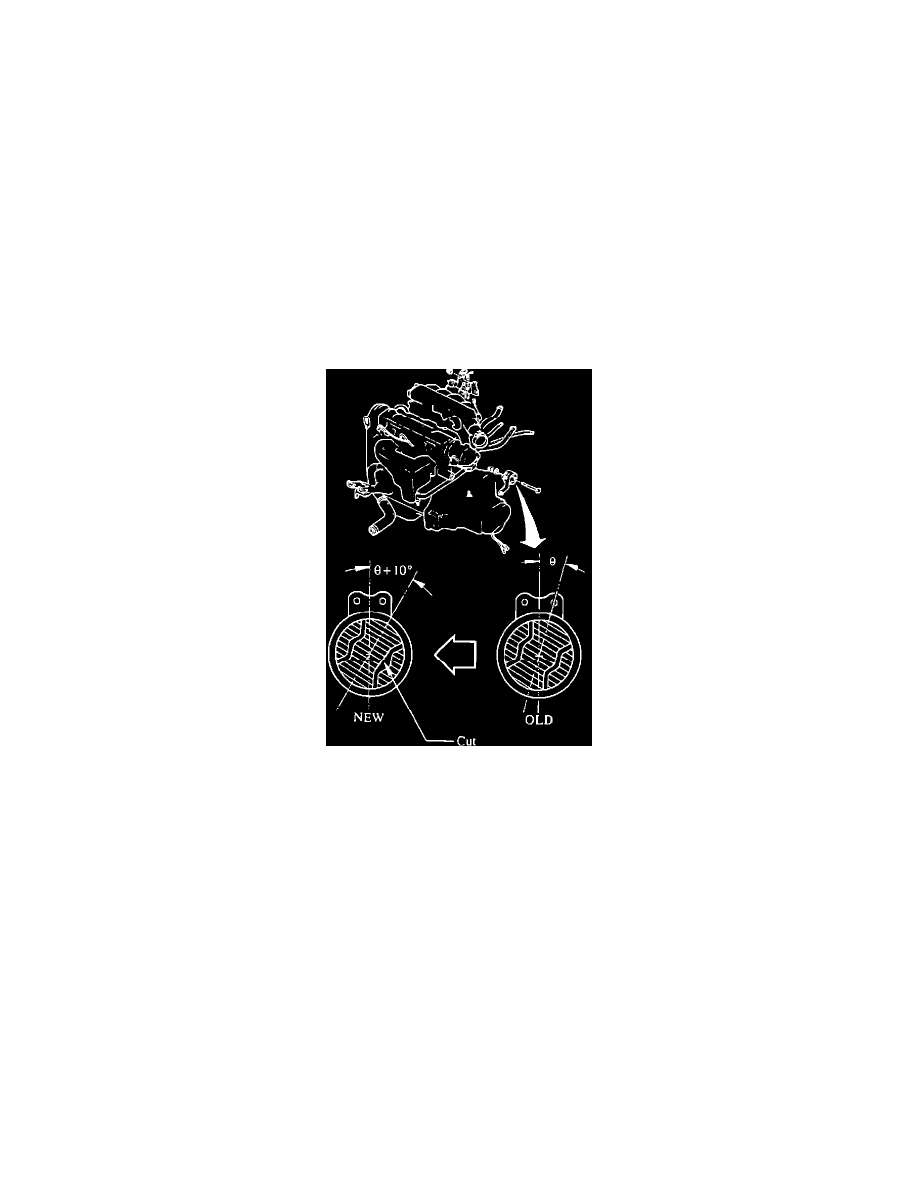

Replace the no. 1 and no. 2 engine mounts with countermeasure parts.
7.
Remove and discard the no. 2 silencer hanger and rubbers which are located in front of the pre-silencer. After removing the hangers from the
body, reinstall the bolts into the body to prevent water from entering.
8.
In a case where the idle vibration is not corrected to a satisfactory level, ground the test connector and adjust the idle speed to 950-1000
RPM. Then, disconnect the test connector.
WARRANTY INFORMATION
Warranty Type Code:
A
Customer Comment Code:
83
Damage Code:
97
Part No. of Main Cause:
GNY1 39 0400 (ATX w/o Turbo)
GNY2 39 0400 (ATX w/Turbo) GNY1 39 0500 (ATX w/Turbo, w/o Turbo)
Operation No:
XX0376-R-X (for all repairs) XX0331-R-2 (except R&R of no. 1 and no. 2 engine mounts)
Labor Hours:
1.0 Hr. (for all repairs) 0.4 Hr. (except R&R of no. 1 and no. 2 engine mounts)
