MX-6 LS V6-2.5L DOHC (1997)
ABS Hydraulic Unit: Testing and Inspection
Solenoid Valve Body
Solenoid Valve

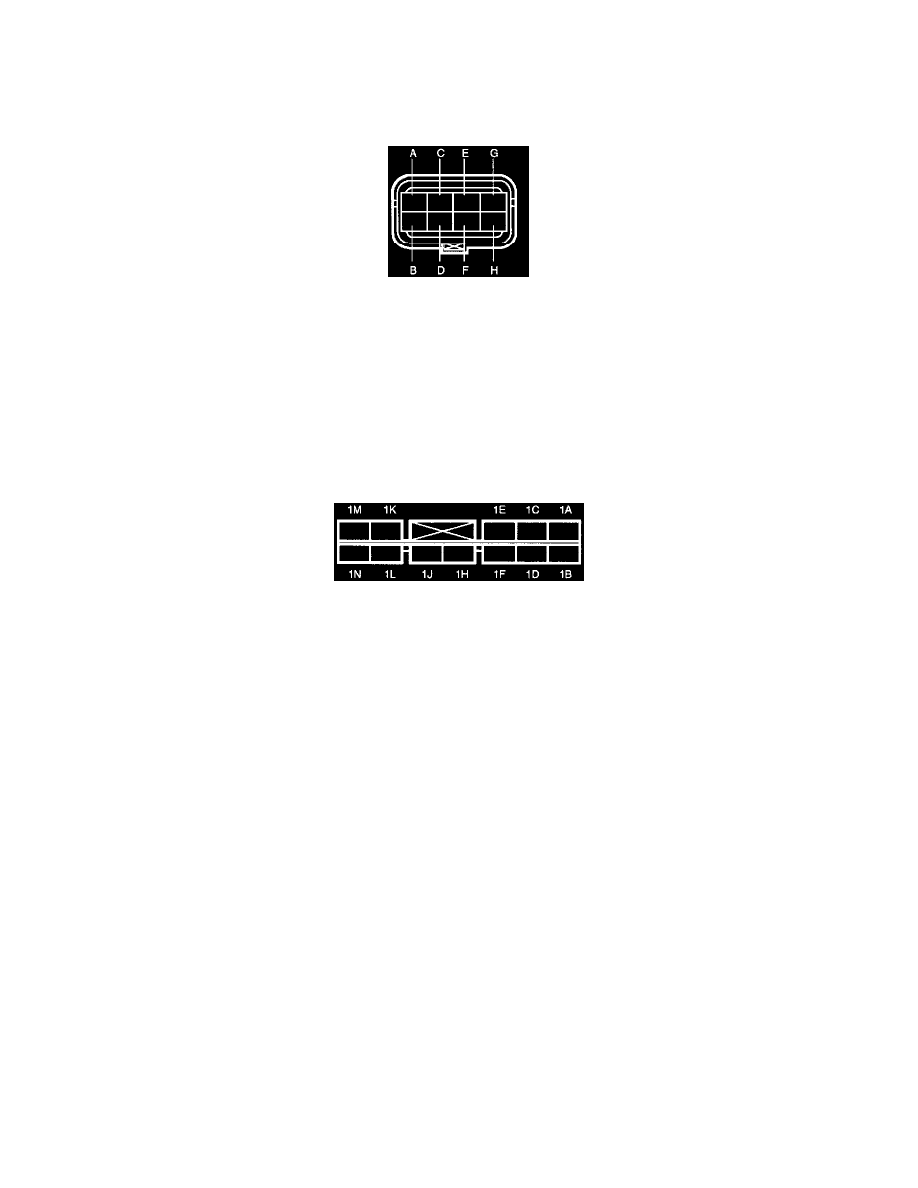

1. Disconnect the ABS hydraulic unit connector (8 pin).
2. Measure the resistance between the following terminals.
Terminal
D-H
C-G
A-E
B-F
^
Resistance: 2-5 ohms.
3. If not as specified, check the ABS hydraulic unit wiring harness or replace the ABS hydraulic unit if necessary.
Solenoid Valve Harness at Control Module Check
1. Turn the ignition switch OFF.
2. Measure the resistance between a ground and the following terminals at the ABS control module connector (12 pin).
^
Terminal:
1A, Right rear
1B, Left front
1C, Right front
1D, Left rear
^
Resistance: 2-5 ohms.
3. If not as specified, check the wiring harness between the ABS hydraulic unit connector (8 pin) and the ABS control module for open or short
circuit.
