MX-6 LS V6-2.5L DOHC (1997)

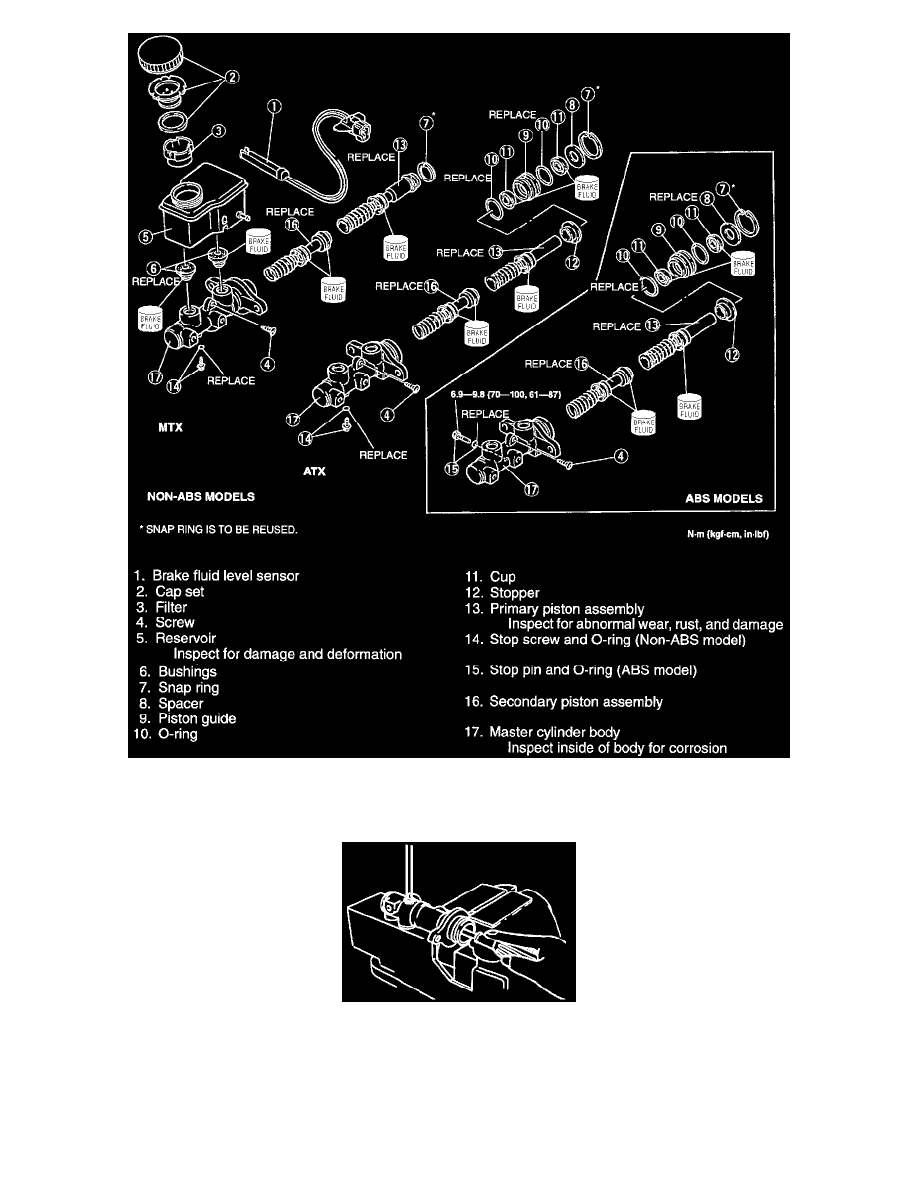

1. After removing the brake fluid, disassemble in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary. If the master cylinder body is damaged, replace the unit as an assembly.
3. Assemble in the reverse order of disassembly.
Stop Screw and O-ring Installation Note
1. Push the secondary piston assembly in fully.
2. Install and tighten a new O-ring and stop screw.
3. Push and release the piston to verify that it is held by the stop screw.
