MX-6 LS V6-2.5L DOHC (1997)
Condenser Fan Motor: Testing and Inspection
Condenser Fan Motor Switch
Inspection

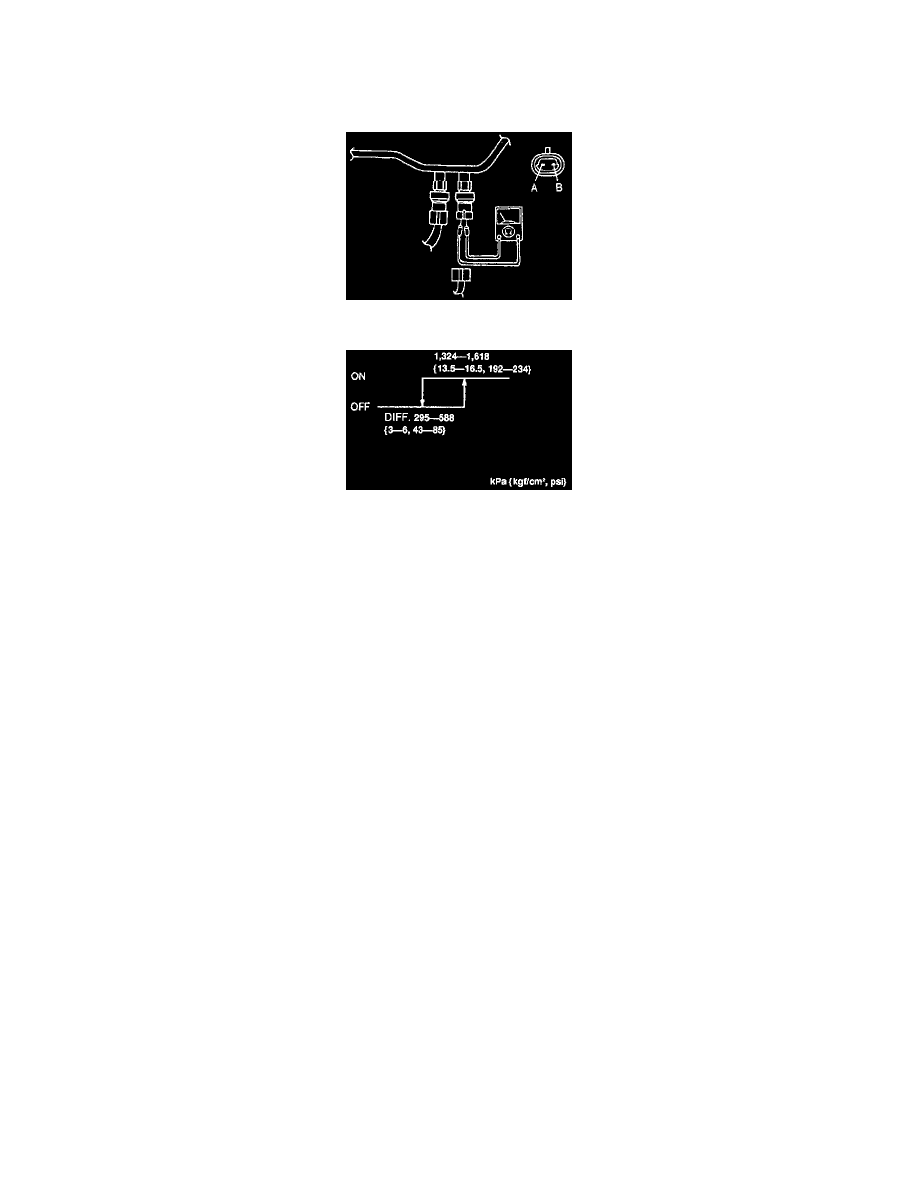

Ohmmeter Connection
Reference
1. Connect a manifold gauge set to the charging valve, verify that the high-pressure side reads
260-2150 kPa {2.6-22.0 kgf/sq. cm, 37-312 psi).
2. Disconnect the refrigerant pressure switch connector and check for continuity between terminals A and B.
3. If not as specified, replace the refrigerant pressure switch.
