MX-6 LS V6-2.5L DOHC (1997)
Evaporator Temperature Sensor / Switch: Testing and Inspection
On-Vehicle Inspection
Inspection
Thermoswitch (A/C amplifier)
On-vehicle
1. Remove the glove compartment.
2. Turn the ignition switch to ON.
3. Backprobe the adapter harness connection (Connector must be connected to the vehicle harness.)

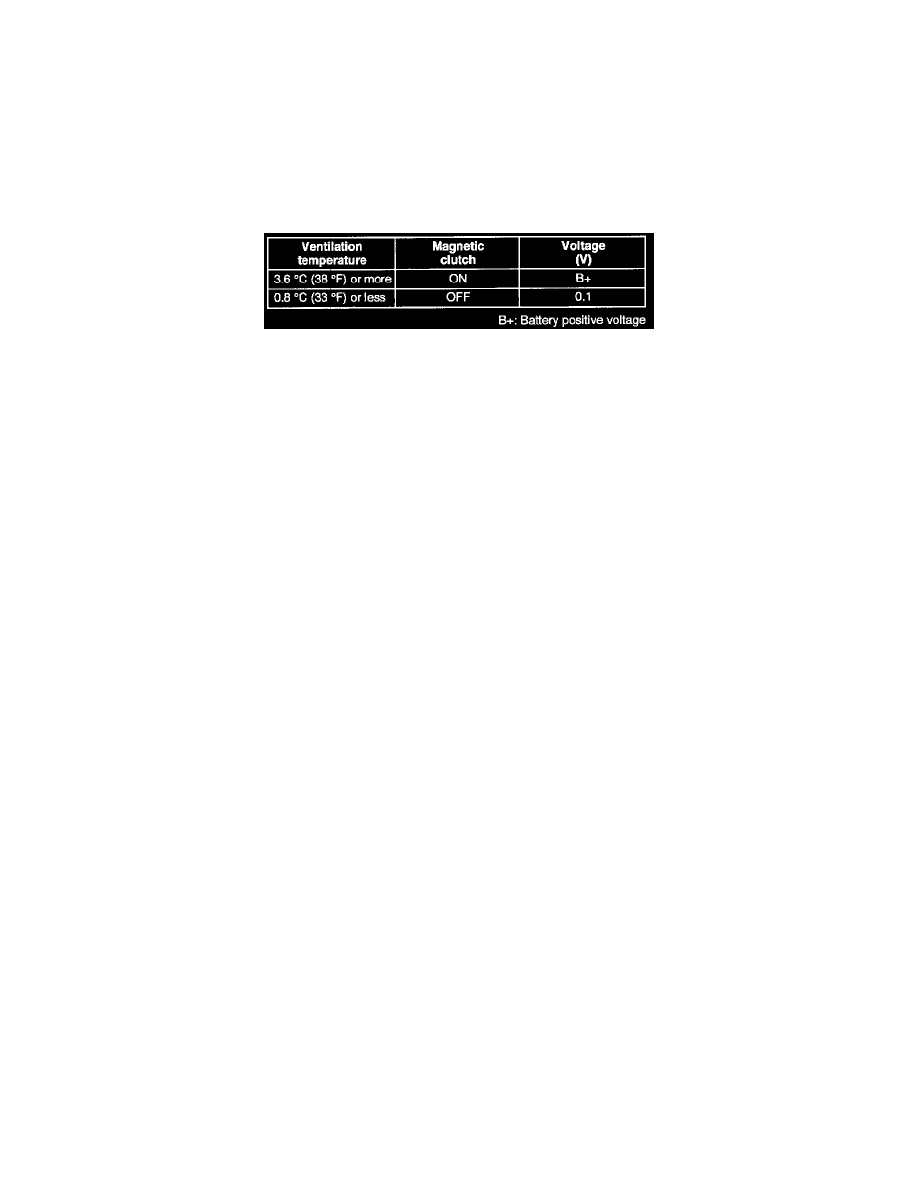

4. Measure the voltage between terminals A and B terminals.
5. If the voltage readings do not correspond t6 the temperature settings 1 clutch operation, perform off-vehicle thermoswitch inspection.
