MX-6 LS V6-2.5L DOHC (1997)
Audible Warning Device: Testing and Inspection
Pinpoint Test 20
Flowchart No. 20 Symptom Even if the ignition key is removed from the ignition switch, ignition key reminder warning alarm will sound when any
door is opened
Possible cause
^
Damaged CPU
^
Damaged key reminder switch
^
Damaged interior light
^
Damaged door switch
^
Short circuit in wiring harness
Step 1
1. Remove the front side trim.
2. Remove the joint box attaching bolt and screw.
3. Remove the CPU from the joint box.
4. Make sure the ignition key is removed from the ignition switch and the door is opened.

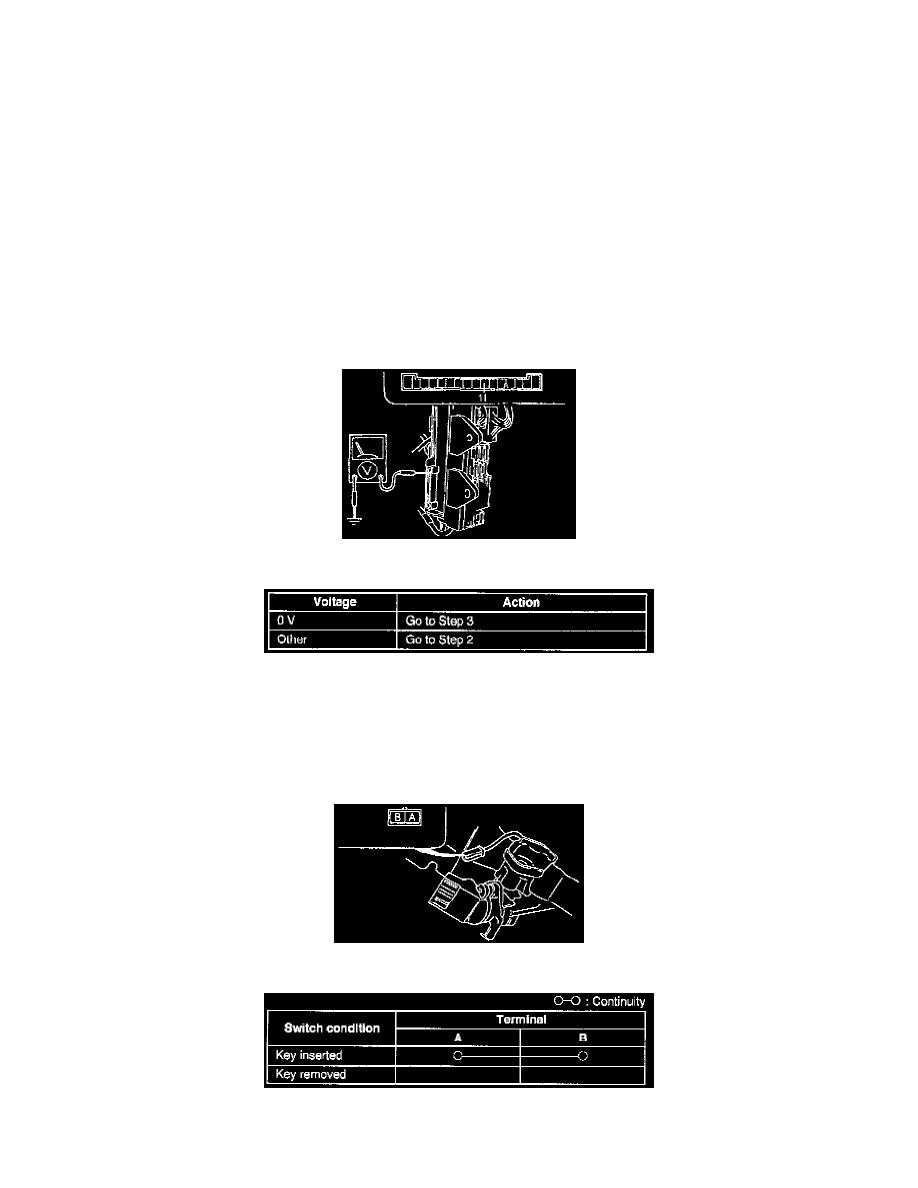

Voltmeter Connection
Action Chart
5. Measure the voltage at terminal 11 of the CPU connector on the joint box.
Step 2
1. Remove the column cover. (Refer to the 1997 626/MX-6 Workshop Manual, section S.)
2. Disconnect the key reminder switch connector.
Ohmmeter Connection
Reference
