MX-6 LS V6-2.5L DOHC (1997)
3. Check for continuity between the terminals of the key reminder switch.
4. If correct, repair the wiring harness (Key reminder switch-CPU).
5. If not as specified, replace the steering lock.
Step 3
1. Leave the ignition key in the ignition switch and close all doors.

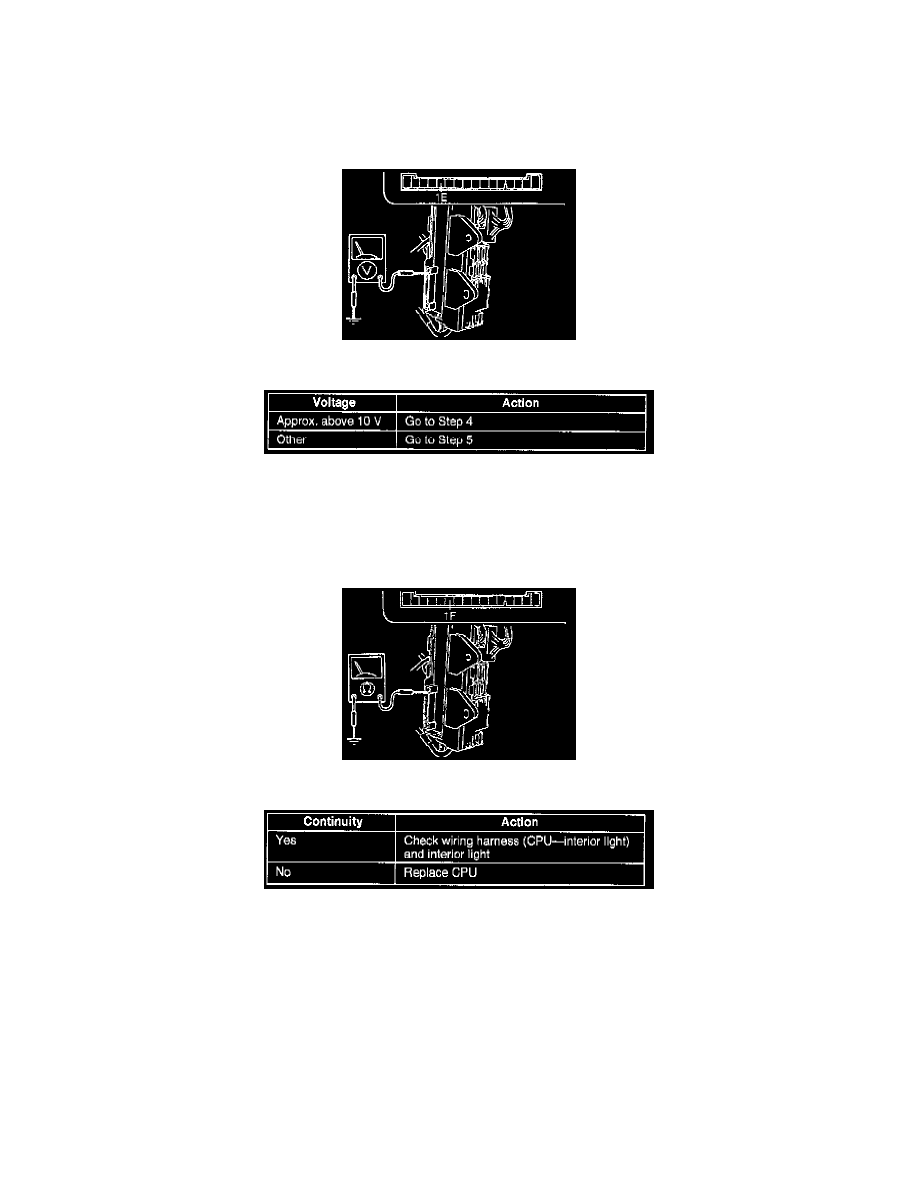

Voltmeter Connection
Action Chart
2. Measure the voltage at terminal 1E of the CPU connector on the joint box.
Step 4
1. Make sure the interior light is off.
Ohmmeter Connection
Action Chart
2. Check for continuity between terminal 1F of the CPU connector on the joint box and ground.
Step 5
1. Remove the door switches.
