MX-6 LS V6-2.5L DOHC (1997)
Drive Belt: Testing and Inspection
Alternator Belt
Inspection

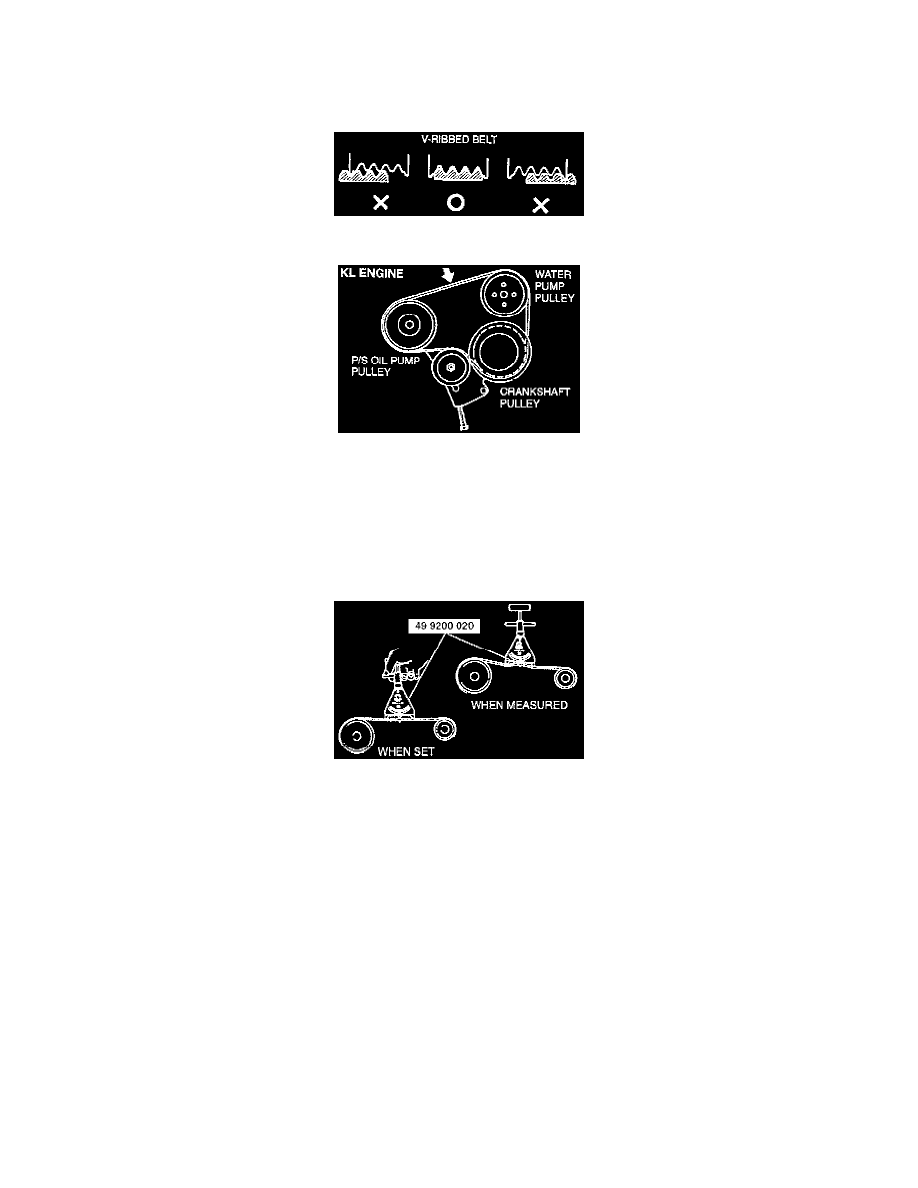

1. Check the drive belts and pulleys for wear, cracks, and damage. Replace if necessary.

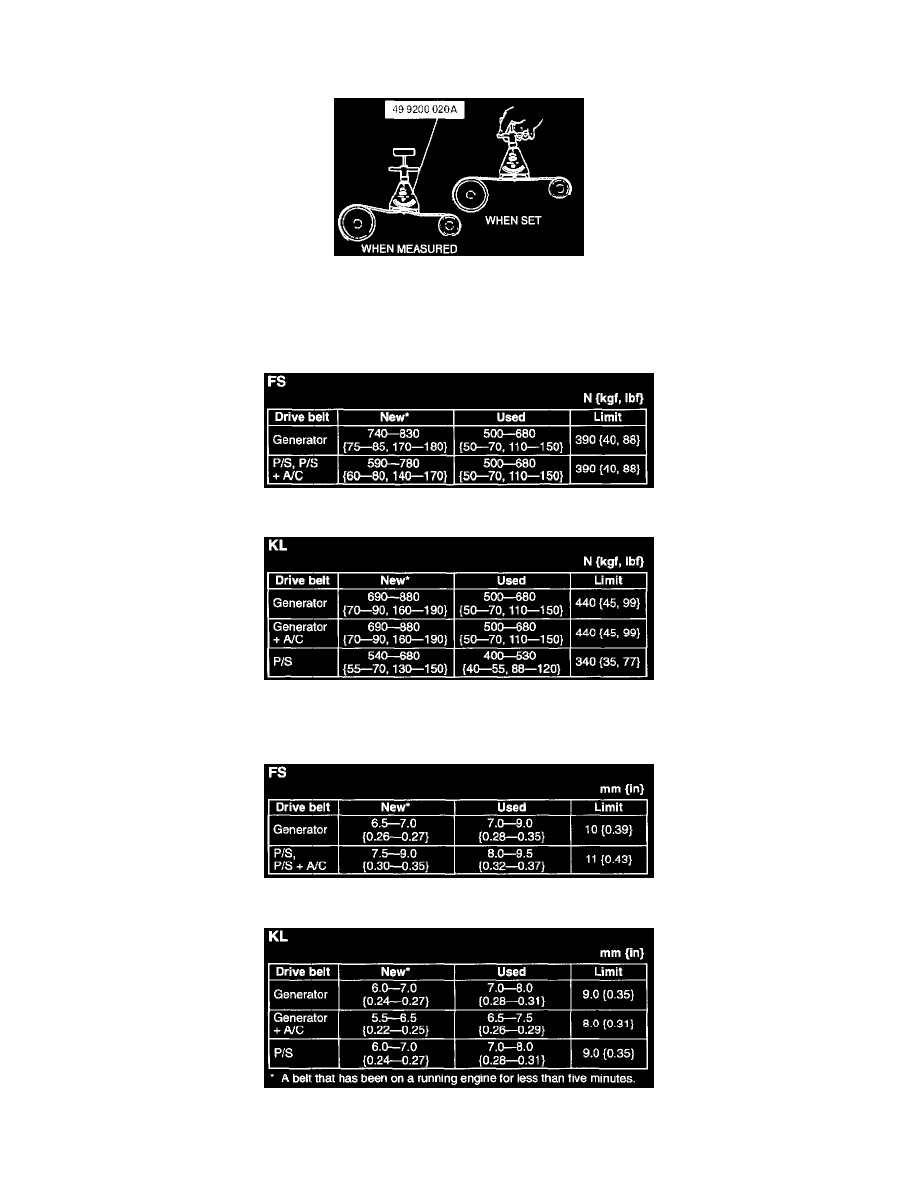

2. Measure the drive belt tension by using a SST.
3. Measure the deflection by applying moderate pressure 98 N (10 kgf, 22 lbf) midway between the pulleys.
4. Adjust the belt if necessary.
FS Engine
KL Engine
Tension
FS Engine
KL Engine
