MX-6 LS V6-2.5L DOHC (1997)
Pressure Regulator Control (PRC) Solenoid Valve: Testing and Inspection
1. Remove the Pressure Regulator Control (PRC) solenoid valve.

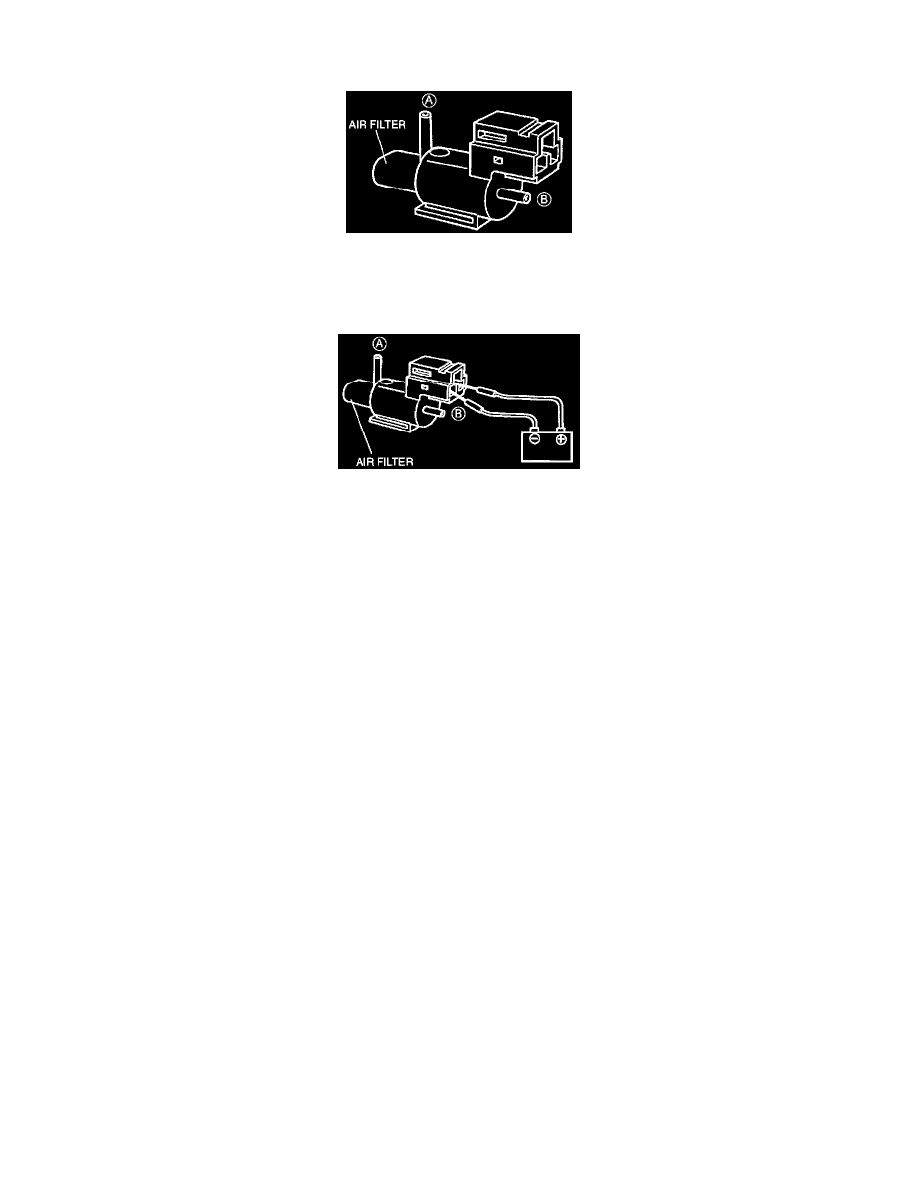

Pressure Regulator Control Solenoid Inspection 1
2. Blow through the solenoid valve from port A.
3. Verify that air flows from port B.
Pressure Regulator Control Solenoid Inspection 2
4. Apply battery voltage to solenoid valve terminal.
5. Blow through the solenoid valve from port A.
6. Verify that air flows from the valve air filter.
7. If not as specified, replace the solenoid valve.
NOTE: Verify that the brown connector is securely connected to the PRC solenoid valve.
