MX-6 LS V6-2.5L DOHC (1997)
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Description and Operation
Page 1553
Page 3

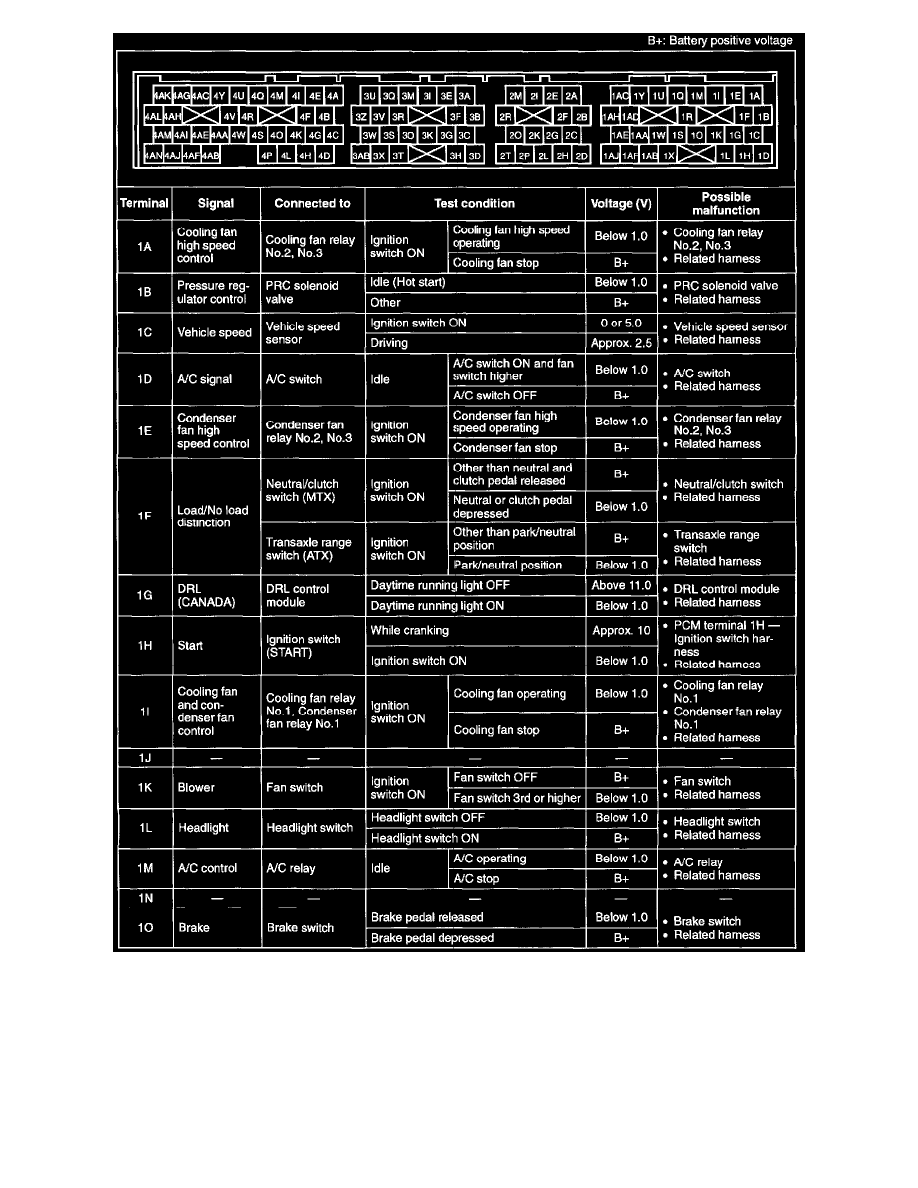

PCM Terminal Voltage Reference (1 Of 7)
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Description and Operation
Page 1553
