MX-6 LS V6-2.5L DOHC (1997)
5. Install the bound stopper.
6. Install the dust cover.
7. Install the lower rubber spring seat.
8. Install the shock absorber, fitting the end of the coil into the step of the lower seat.
9. Install the thrust bearing.

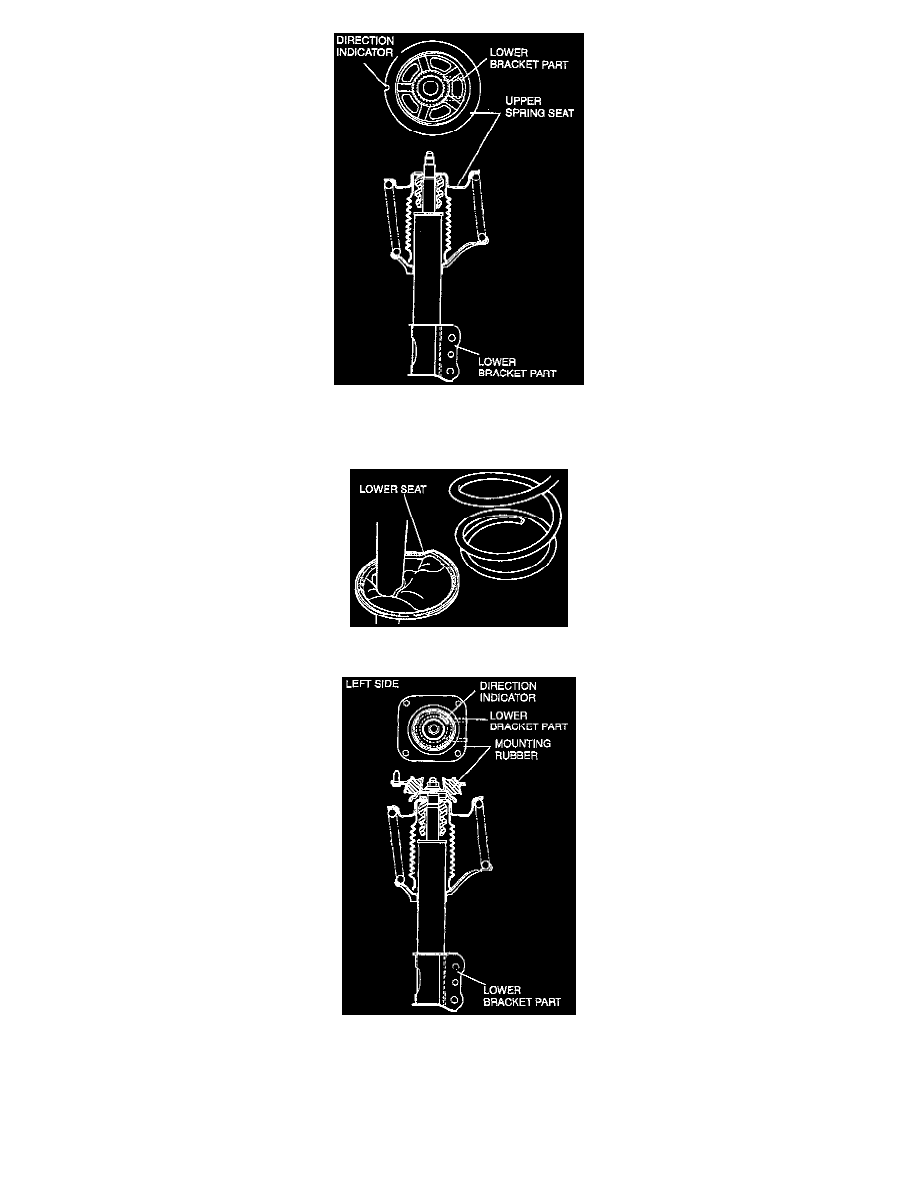

10. Install the mounting rubber, facing the direction indicator as shown.
11. Tighten the nut several turns.
12. Remove the SST.
13. Verify that the lower coil of the spring is seated on the step of the lower seat.
CAUTION: To prevent damage to the shock absorber, use protective plates in the jaws of the vise.
