MX-6 LS V6-25L DOHC (1997) | Transaxle Differential Pinion Gear

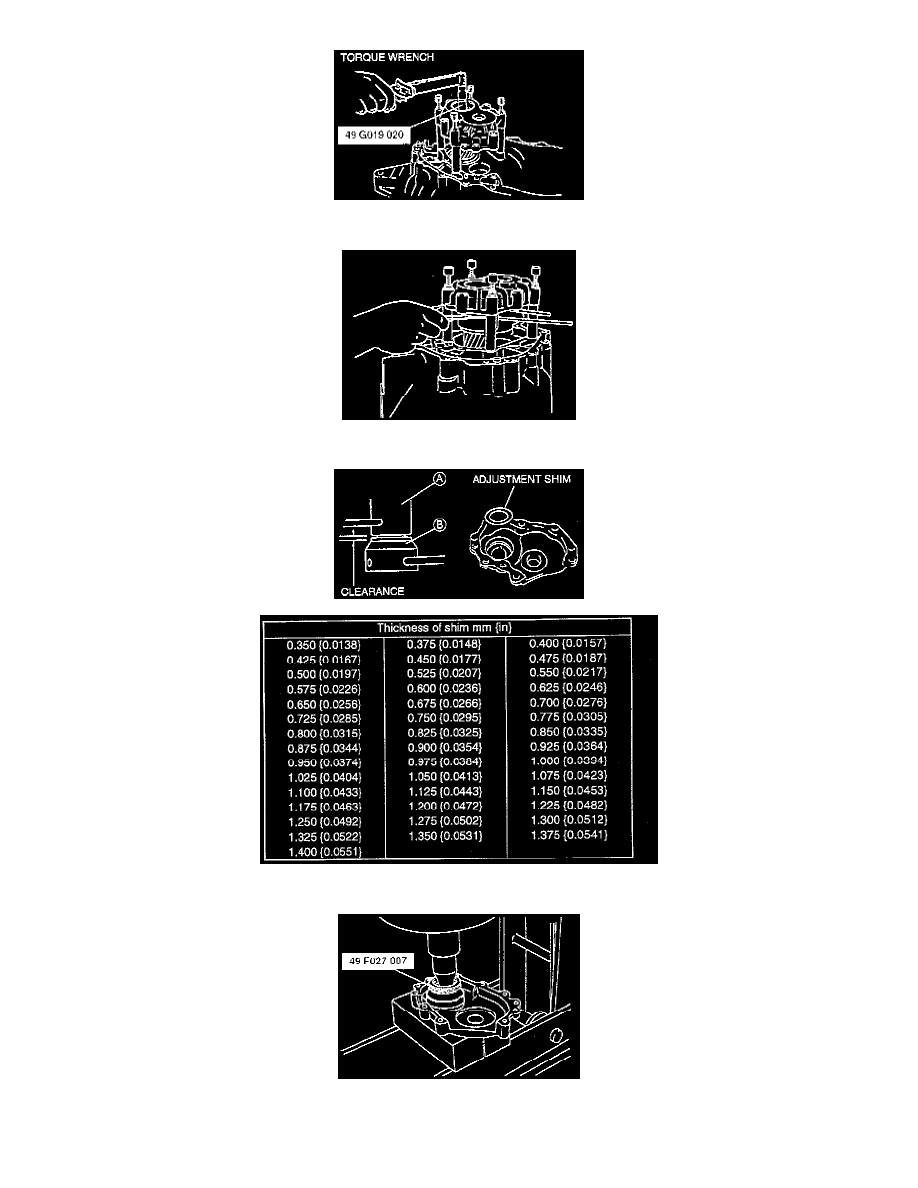

15. Measure the bearing preload at the point that the output gear starts to turn.
16. Measure the gap around the circumference of the SST (selector) by using a feeler gauge.
17. Take the maximum reading and determine the shim to be used. Use no more than one shim.
18. Remove the bearing housing and the SST.
19. Install the required shim and press the bearing race into the bearing housing by using the SST.
