MX-6 LS V6-2.5L DOHC (1997)
Fluid Pump: Service and Repair
DISASSEMBLY

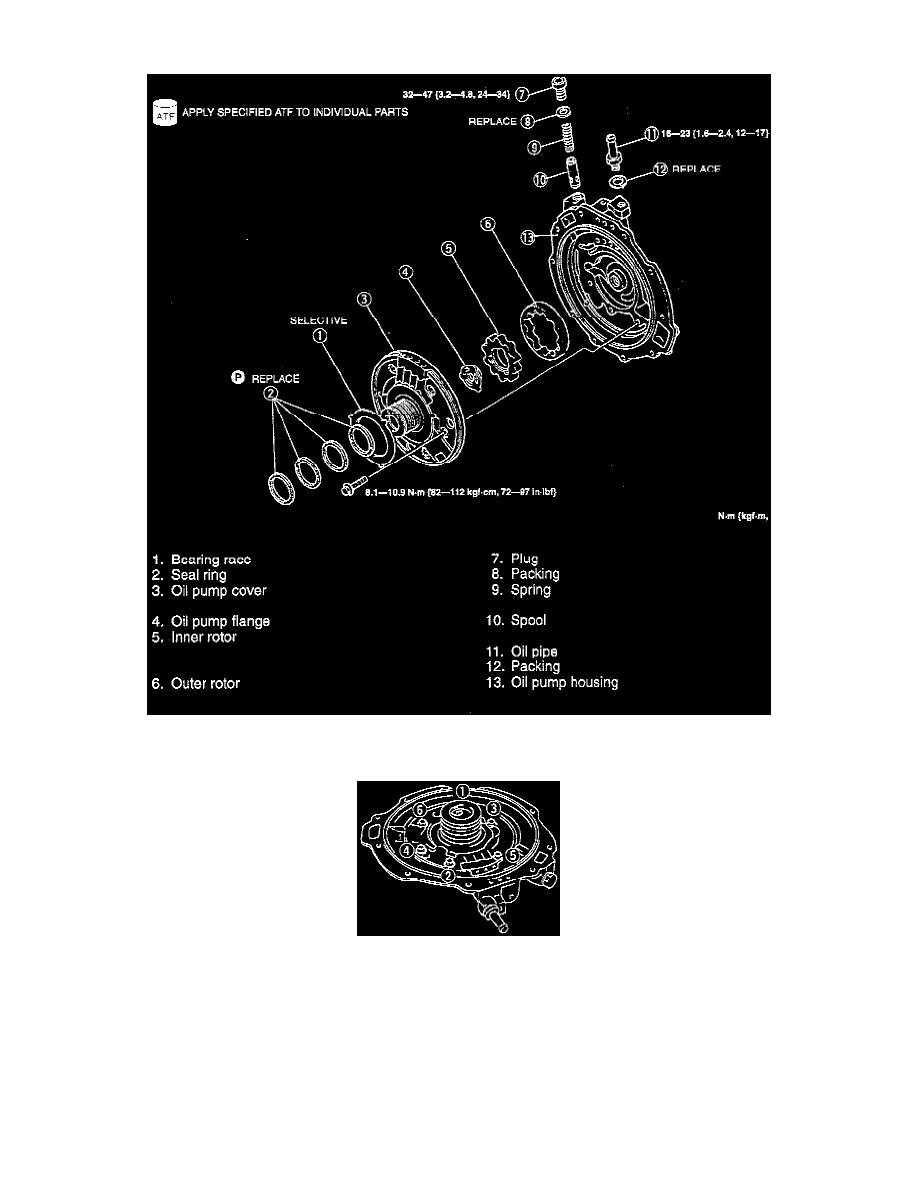

1. Disassemble in the order shown in the illustration, referring to the following notes.
Oil Pump Cover
1. Loosen the mounting bolts evenly in the order shown.
2. Remove the oil pump cover from the oil pump housing.
