MX-6 LS V6-2.5L DOHC (1997)
INSTALLATION
Install in the reverse order of removal, referring to the following notes:
Clutch Pipe
1. Modify the clutch pipe tightening torque to allow for a torque wrench-SST combination.
1. Tighten the clutch pipe by using the SST to 12.8 - 21.5 Nm (113 - 190 inch lbs.).
Clump
^

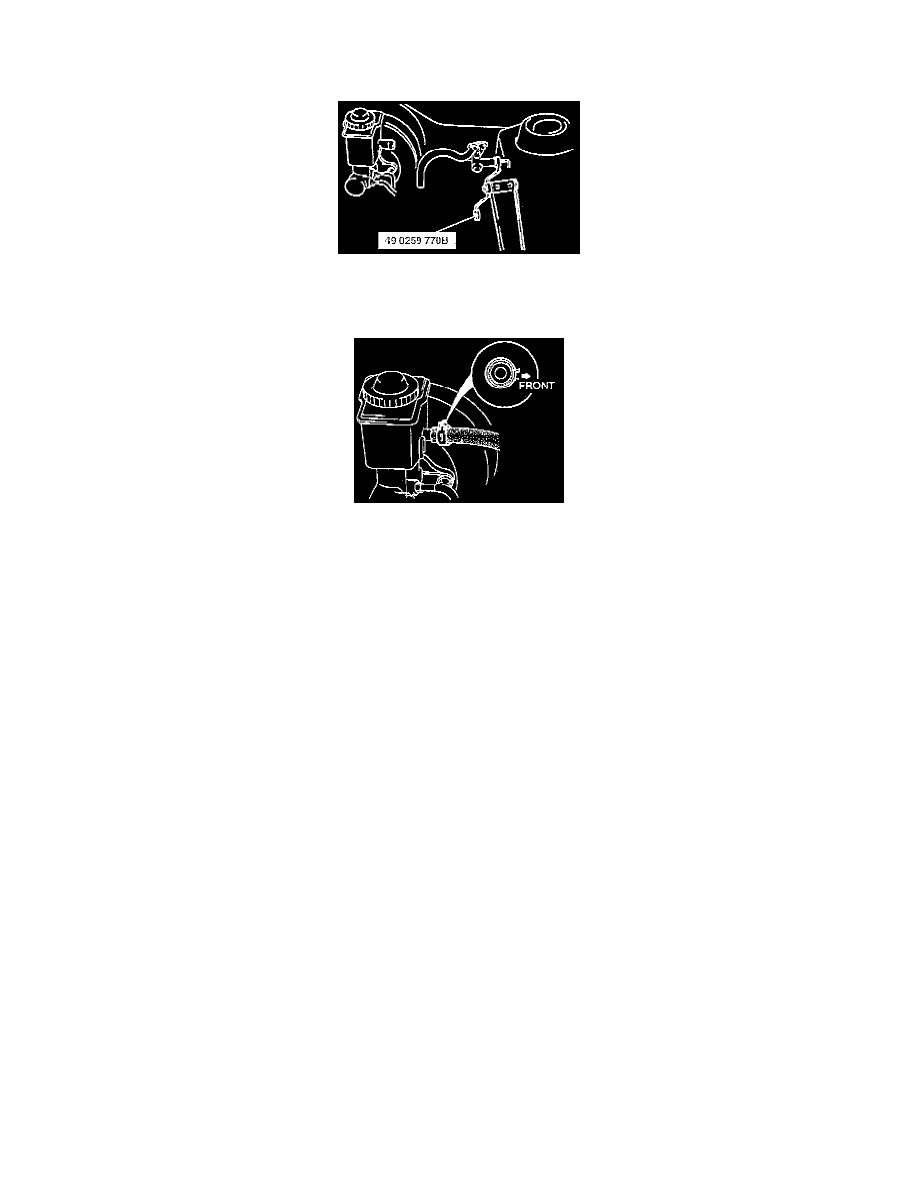

Connect the hose and install the clamp as shown in the illustration.
AFTER INSTALLATION
1. Bleed the clutch and the brake system.
2. Inspect and adjust the clutch pedal height and free play.
