MX-6 LS V6-2.5L DOHC (1997)
Transmission and Drivetrain
Drive Axles, Bearings and Joints / Axle Shaft Assembly / Axle Shaft / Component Information
Diagrams
Constant Velocity Type
Page 1

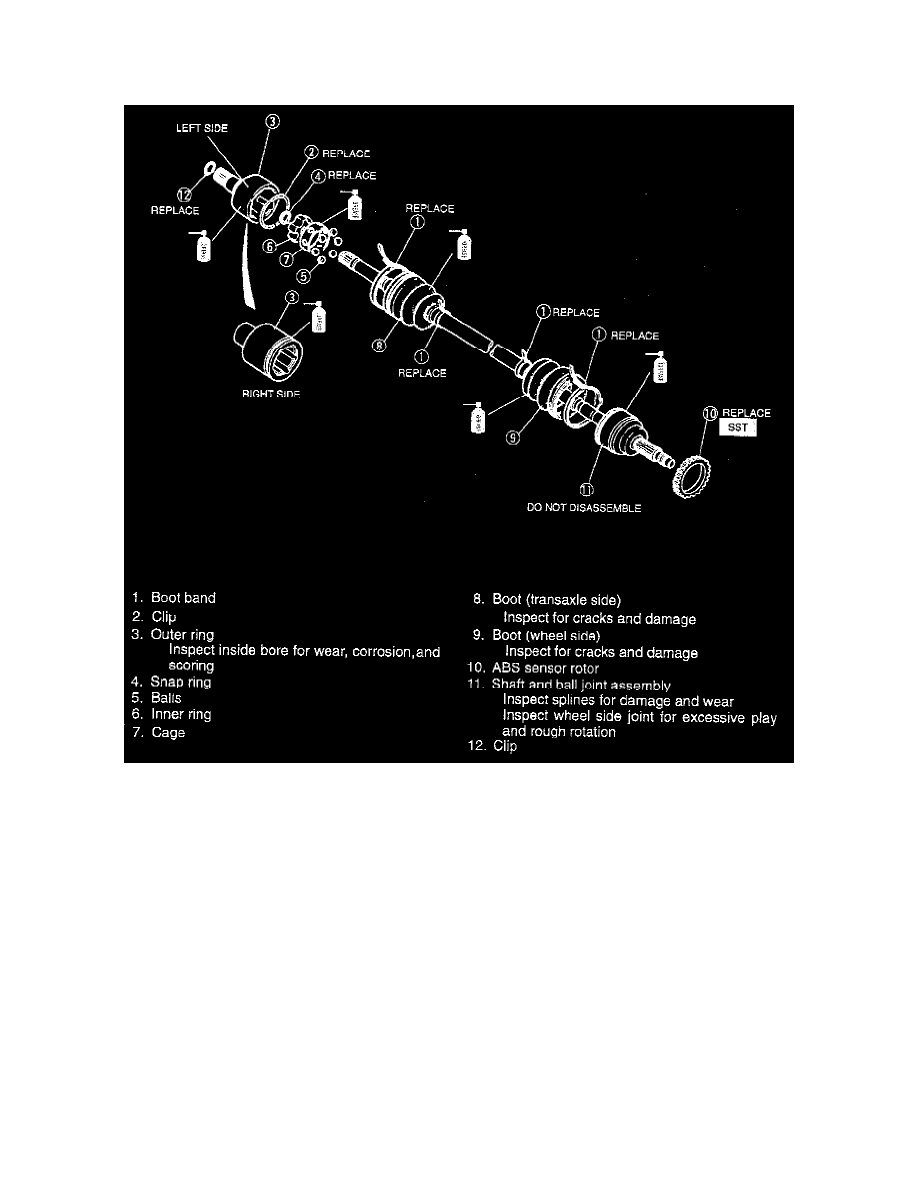

Axle Shaft: Diagrams
Constant Velocity Type
Transmission and Drivetrain
Drive Axles, Bearings and Joints / Axle Shaft Assembly / Axle Shaft / Component Information
Diagrams
Constant Velocity Type
