MX-6 LS V6-2.5L DOHC (1997)
5. Remove the SST.

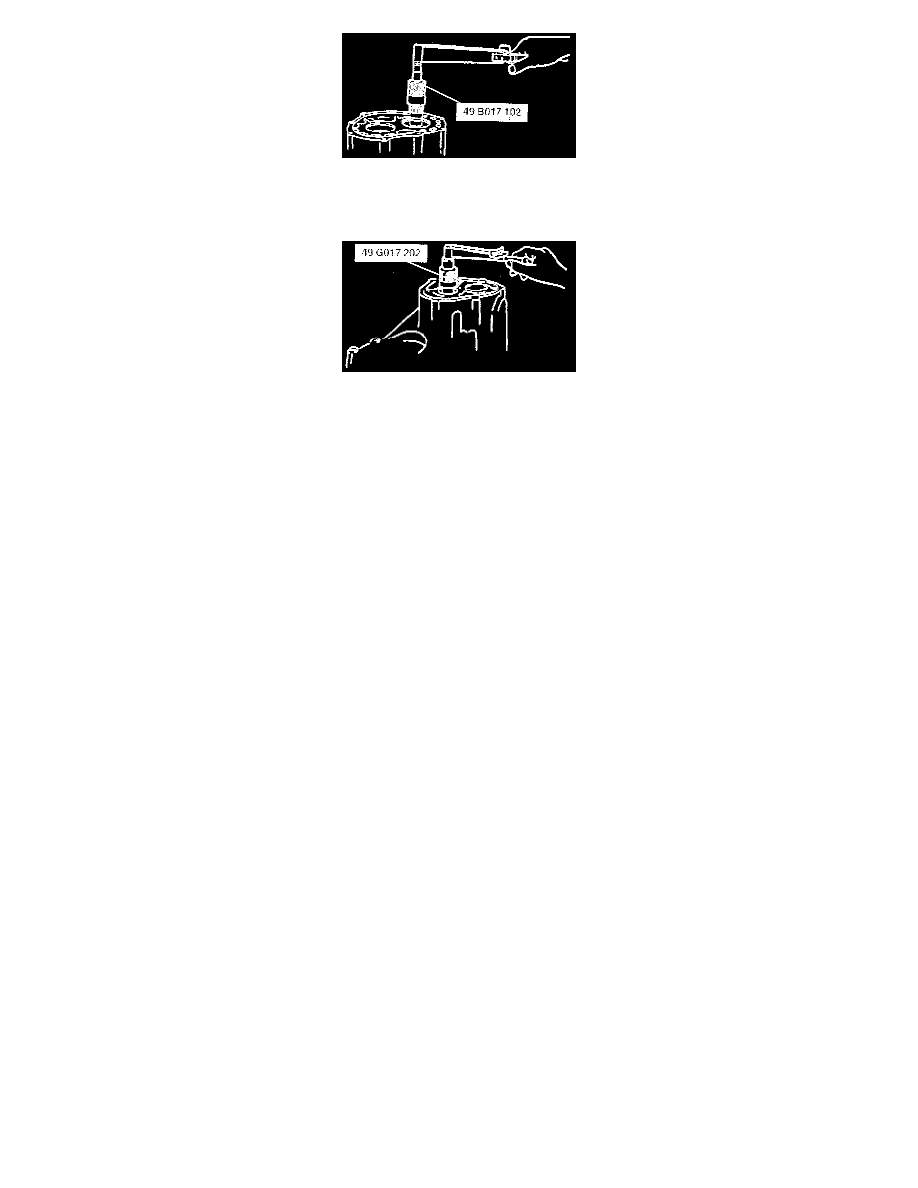

6. With the transaxle facing in the direction shown in the figure, install the SST to the primary shaft gear assembly.
7. Connect a torque wrench to the SST and measure the preload. Preload should be 0.1 - 0.2 Nm (0.9 - 2.1 inch lbs.).
8. Remove the SST, transaxle case, primary shaft gear assembly, and differential.
9. Install the secondary shaft gear assembly and transaxle case, and tighten to 38 - 51 Nm (28 - 38 ft. lbs.).
10. Install the SST to the secondary shaft gear assembly.
11. Connect a torque wrench to the SST and measure the preload. Preload should be 0.2 - 0.4 Nm (1.8 - 3.4 inch lbs.)
