MX-6 LS V6-2.5L DOHC (1997)
Seals and Gaskets: Service and Repair
Transaxle Side Seals, M/T
REPLACEMENT

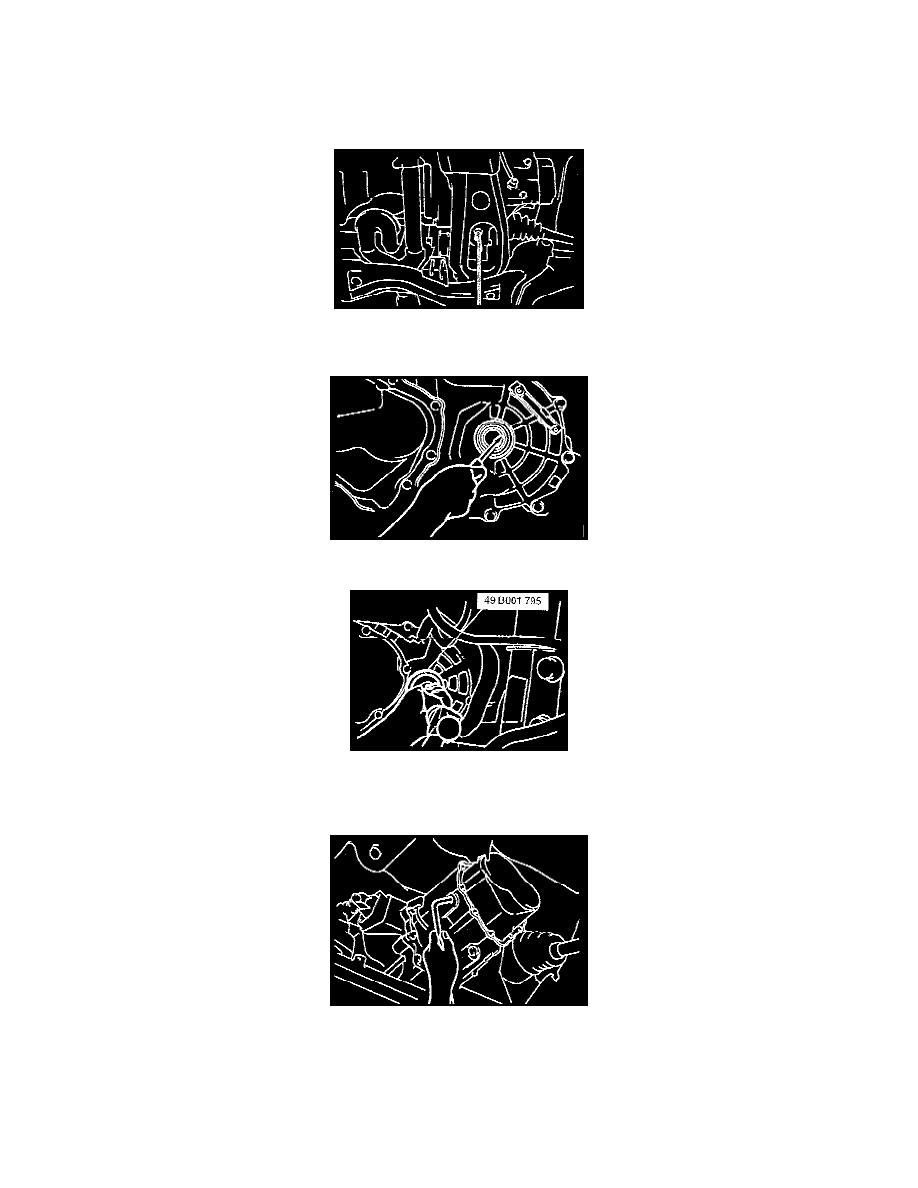

1. On level ground, jack up the vehicle and support it evenly on safety stands.
2. Remove the drain plug and washer.
3. Drain the oil into a suitable container.
4. Separate the drive shaft and joint shaft from the transaxle.
5. Remove the oil seal.
6. Using the Special Service Tool (SST) and a hammer, tap the new oil seal in evenly until the SST contacts the transaxle case.
7. Coat the lip of the oil seal with transaxle oil.
8. Insert the drive shaft and joint shaft to the transaxle.
9. Add the specified amount and type of oil.
