MX-6 LS V6-2.5L DOHC (1997)

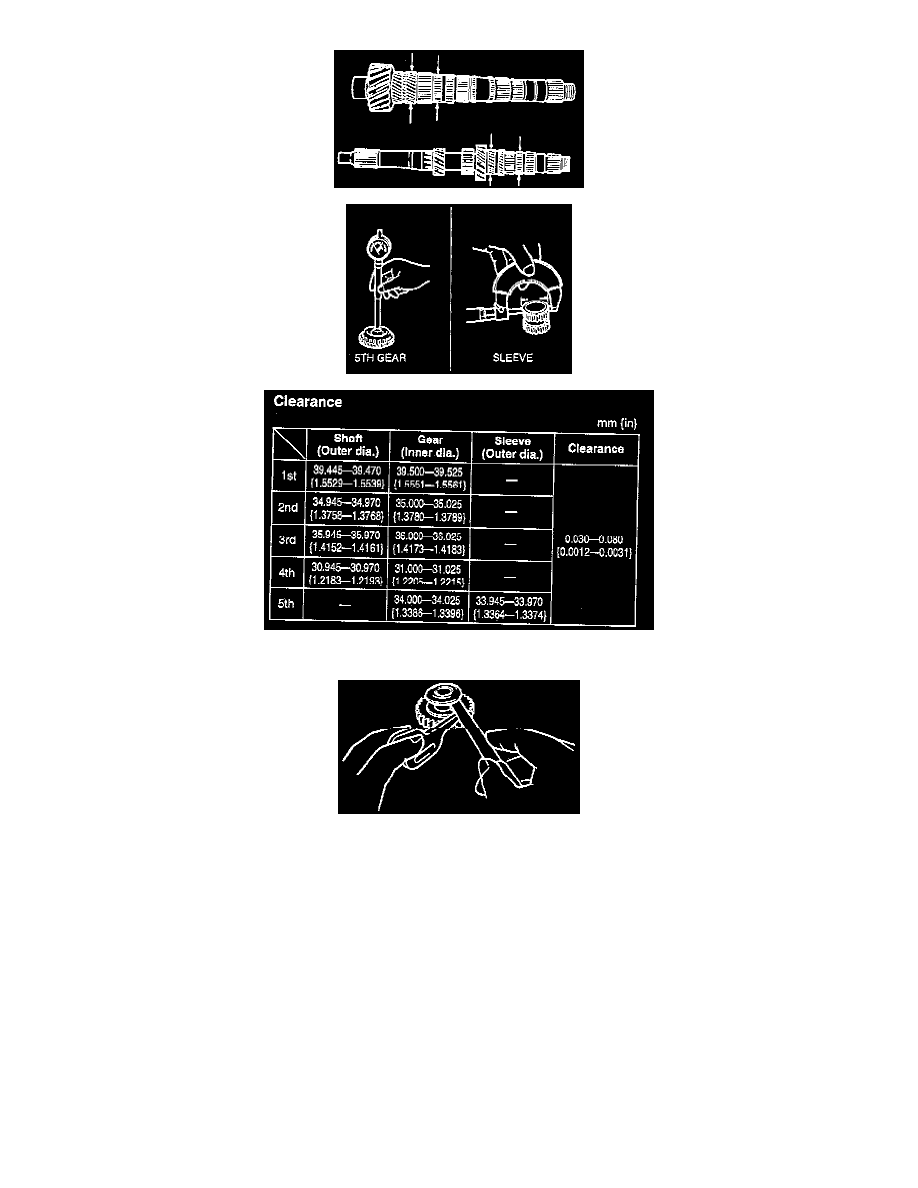

6. Measure the clearance between the shaft and the gears.
REVERSE IDLER GEAR
1. Inspect the gear teeth for damage, wear, and cracks.
2. Measure the clearance between the reverse idler gear bushing and the reverse lever. Standard clearance is 0.10 - 0.35 mm (0.00 - 0.014 inch) and
maximum is 0.85 mm (0.033 inch).
