190E 2.6 (201.029) L6-2.6L (103.942) (1987)
/l6-2.6l_(103.942)/Page-1572003.png)

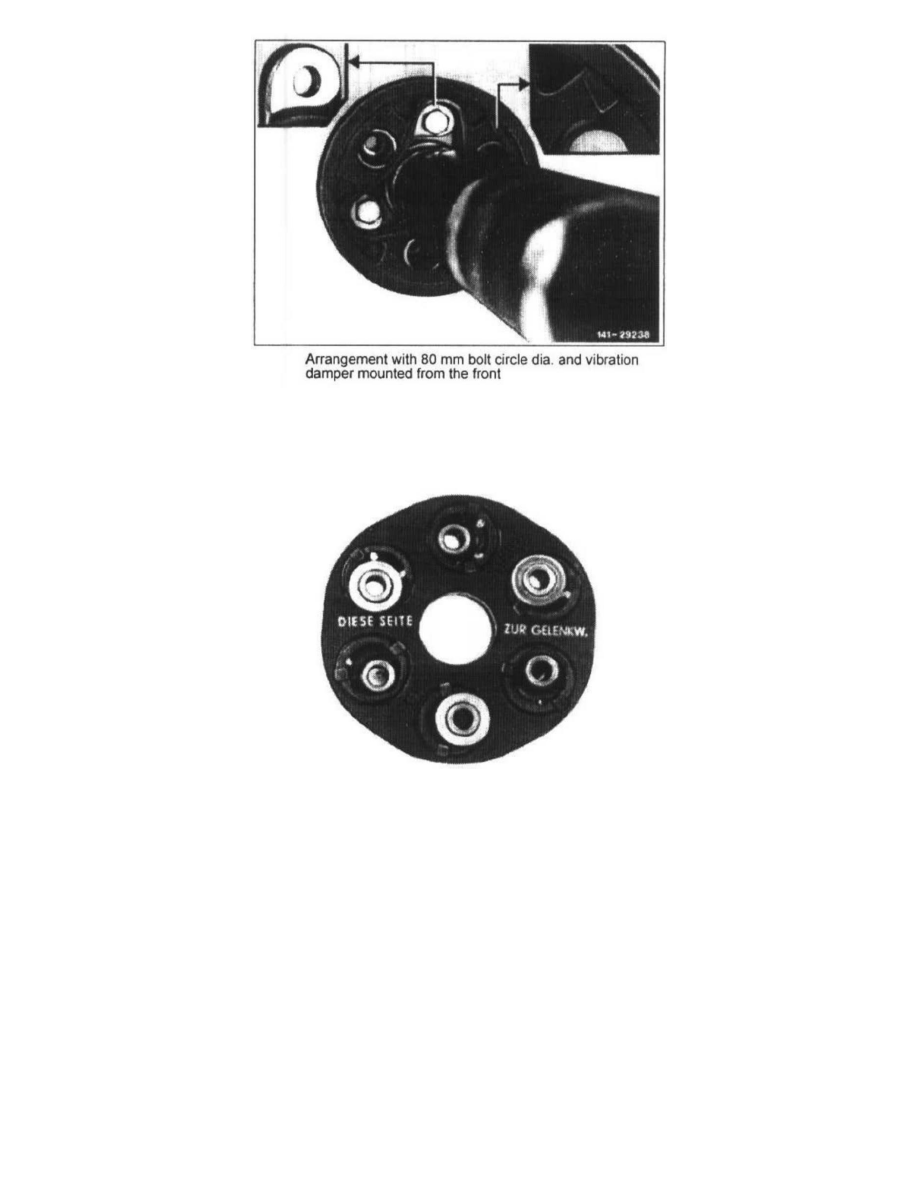

Installation note: The installation position is correct, if the vulcanized arrow on vibration damper behind hump is mounted on three-legged
flange (cutouts). Replace self-locking hexagon nuts; Tightening torque 40 Nm.
3 On propeller shafts without vibration damper, be sure to mark the flexible coupling in relation to three-legged flange of propeller shaft.
4 Soft pull-push flexible coupling (soft pull-push) according to lettering "DIESE SEITE ZUR GELENKWELLE" (THIS SIDE TOWARD
PROPELLER SHAFT).
