190E 2.6 (201.029) L6-2.6L (103.942) (1987)
/l6-2.6l_(103.942)/Page-1573008.png)

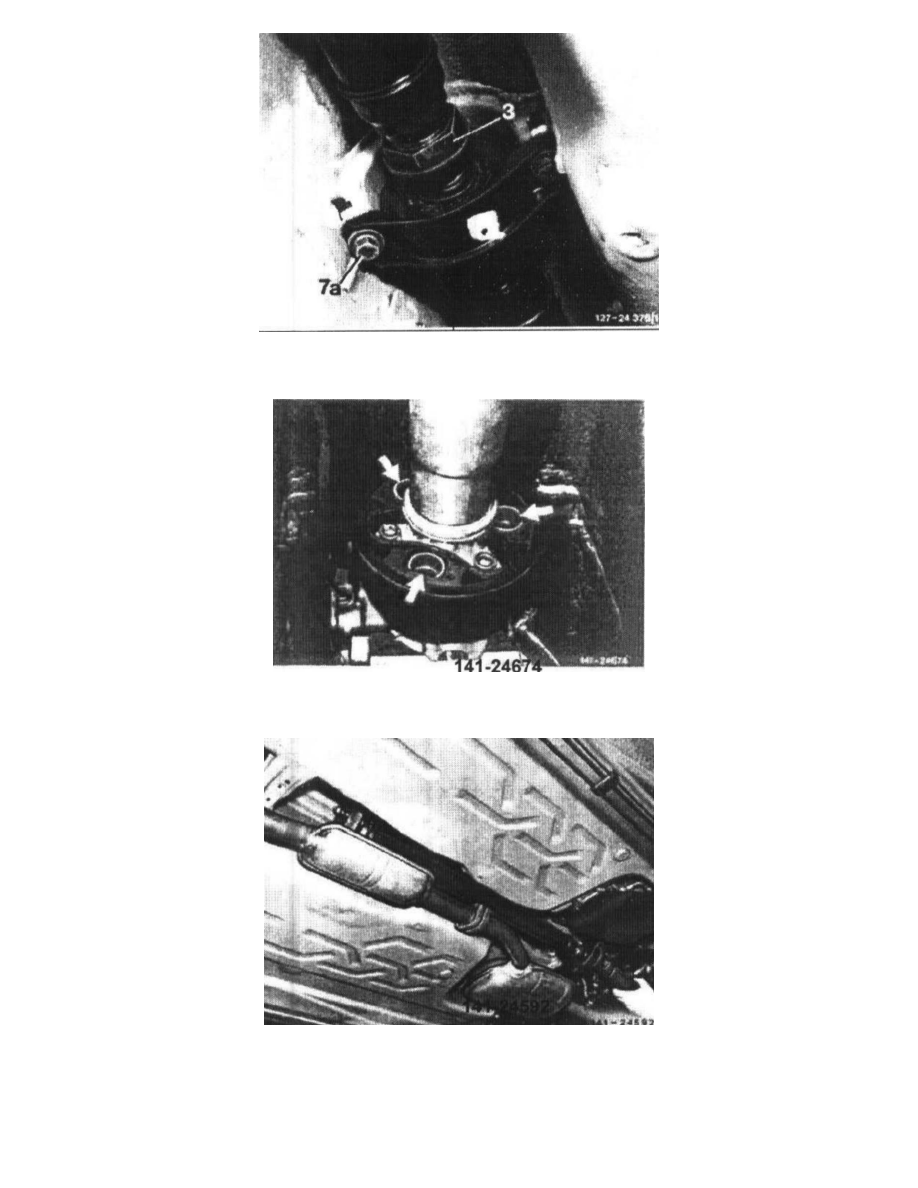

10 Unscrew hex. head screws (7a) of propeller shaft intermediate bearing on frame floor. Tighten hex. head screws only after fastening propeller
shaft on transmission and rear axle, tightening torque 25 Nm.
Note: On vehicles with manual transmission, after tightening transmission propeller shaft connection, pay attention to correct seat of rollers in
vibration damper and force in rollers, if required (arrows).
11 Force propeller shaft from centering pin on transmission and rear axle and remove toward the rear.
