C 55 AMG (203.076) V8-5.5L (113.988) (2006)
Parking Assist Distance Sensor: Service and Repair
AR54.65-P-0001P Remove/Install Parktronic System (PTS) Sensors In Front Bumper
AR54.65-P-0001P Remove/Install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220) Parktronic system (PTS)

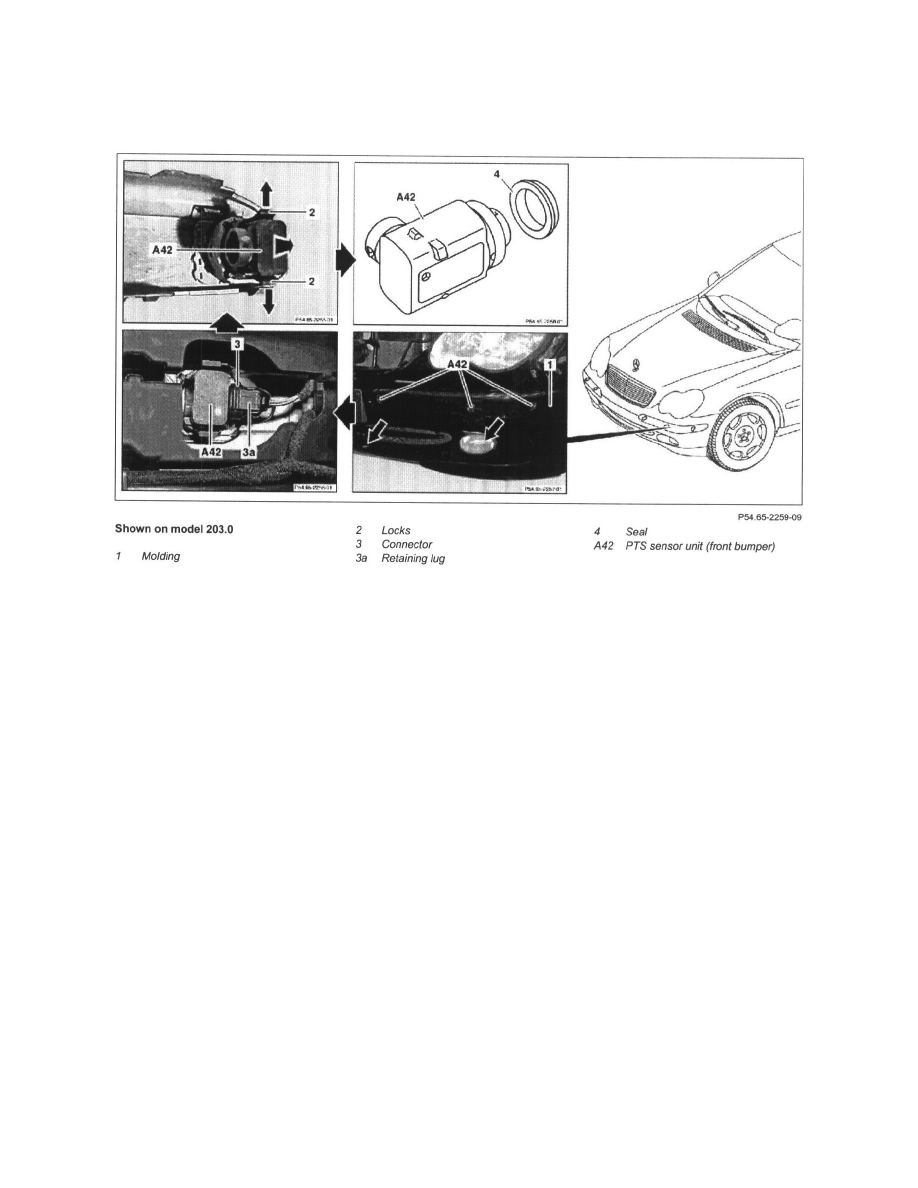

Shown On Model 203.0
1
Remove ram strip (1) from front bumper
NOTE: In direction of arrow
2
Unlock connector (3) and disconnect
NOTE: Gently lift locking tab (3a) using screwdriver
3
Release locks (2) in direction of arrow
See "Special Tools" given below.
4
Remove PTS sensor unit (front bumper) (A42) from bracket
CAUTION: Installation: Check sealing ring (4) and replace if damaged.
NOTE: In direction of arrow.
5
Install in the reverse order
Special Tools
