CL 600 (215.378) V12-5.8L (137.970) (2002)

Page 1
background image

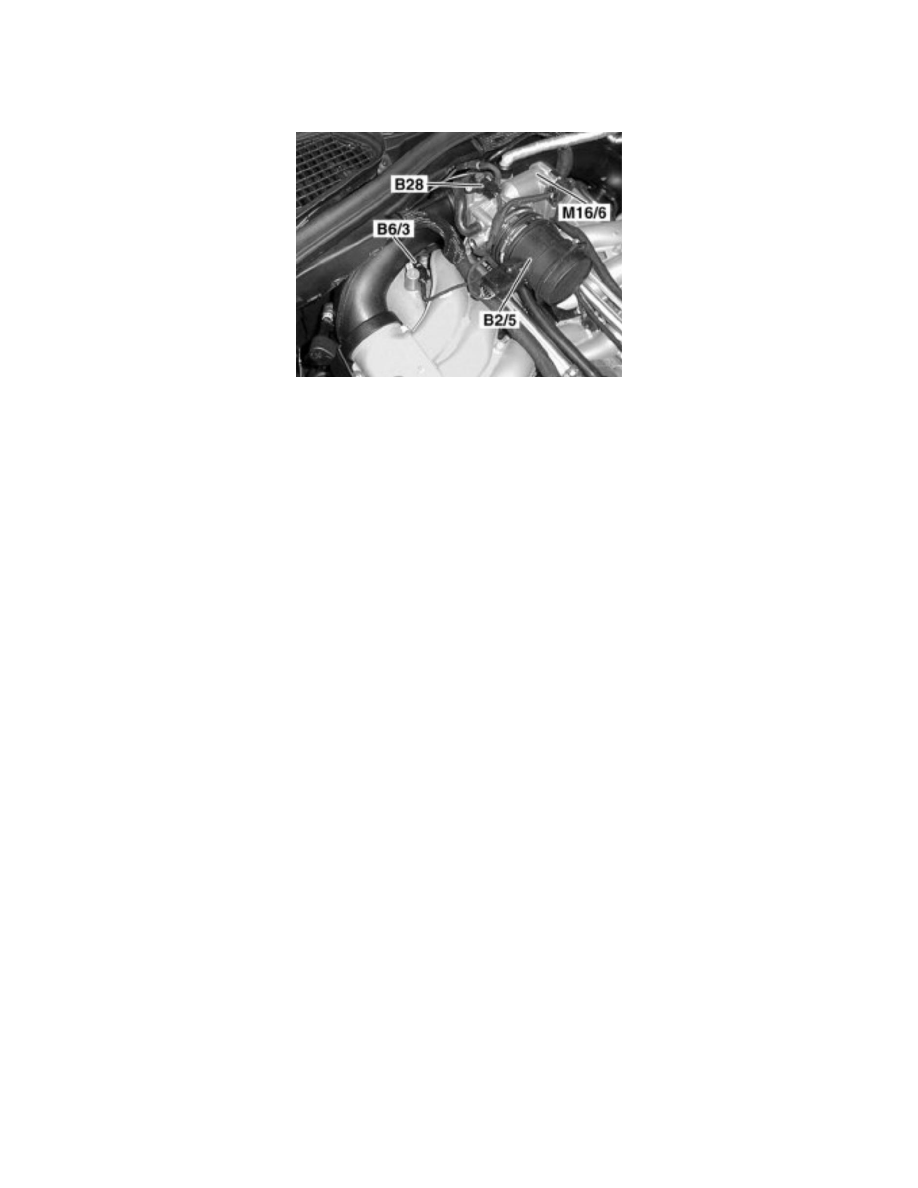

Air Flow Meter/Sensor: Locations
GF07.07-P-4118-01L Hot Film Mass Air Flow Sensor Position

GF07.07-P-4118-01L Hot Film Mass Air Flow Sensor Position
