E 320 Coupe (124.052) L6-3.2L (104.992) (1994)
Note:
If the new version condenser is installed, the refrigerant label must also to be replaced and the correct fill quantity observed.

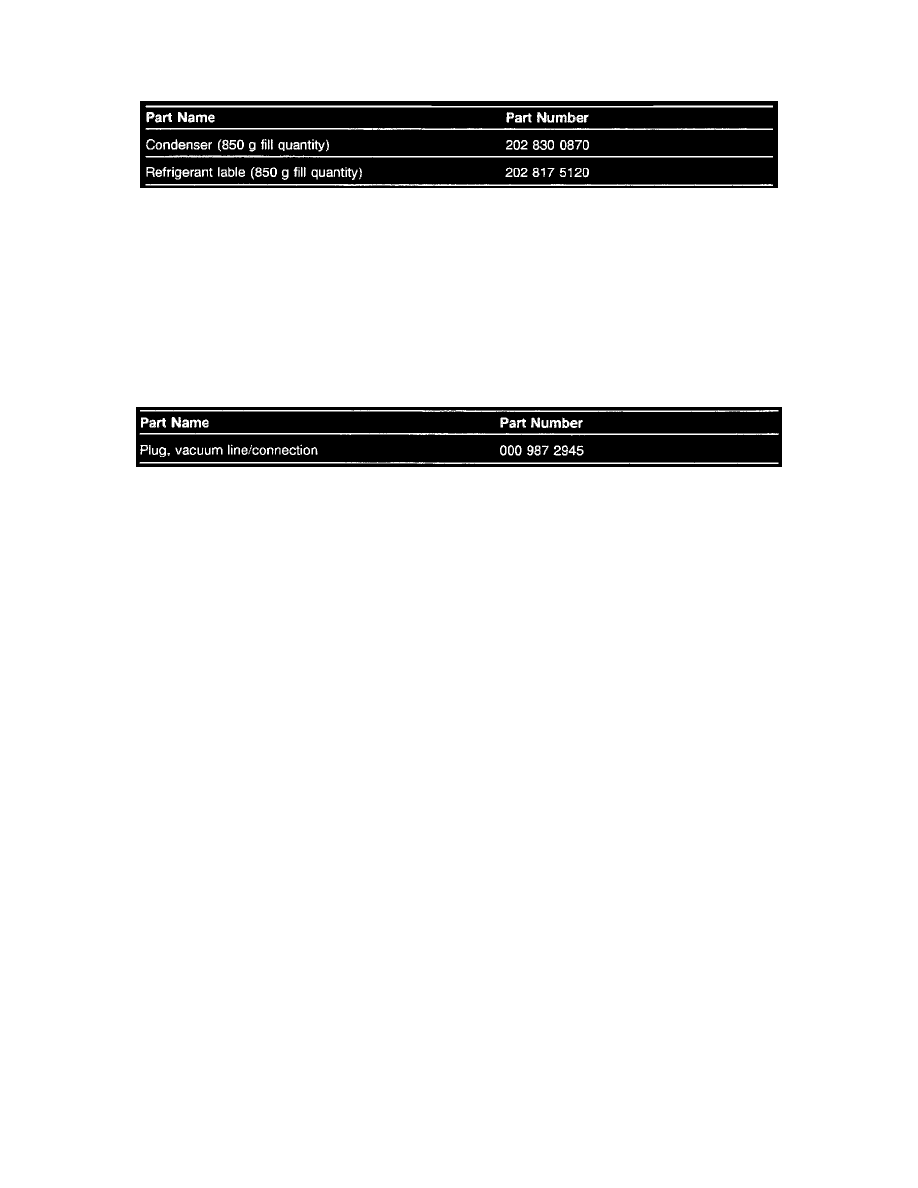

Parts Information
C.
MODEL 129
1.
Changes to the A/C vacuum system
As of 08/94 production (VIN A-107997), connection 3 on the switchover valve block (Y11) is no longer utilized. The vacuum element for the
recirculated air flap (42) will be activated together with the left and right main air flaps (43 and 44).
Note:
Connection 3 on replacement valve blocks must plugged off.
Parts Information
