E 350 4MATIC Sedan (212.087) V6-3.5L (272.977) (2010)

Page 1
background image

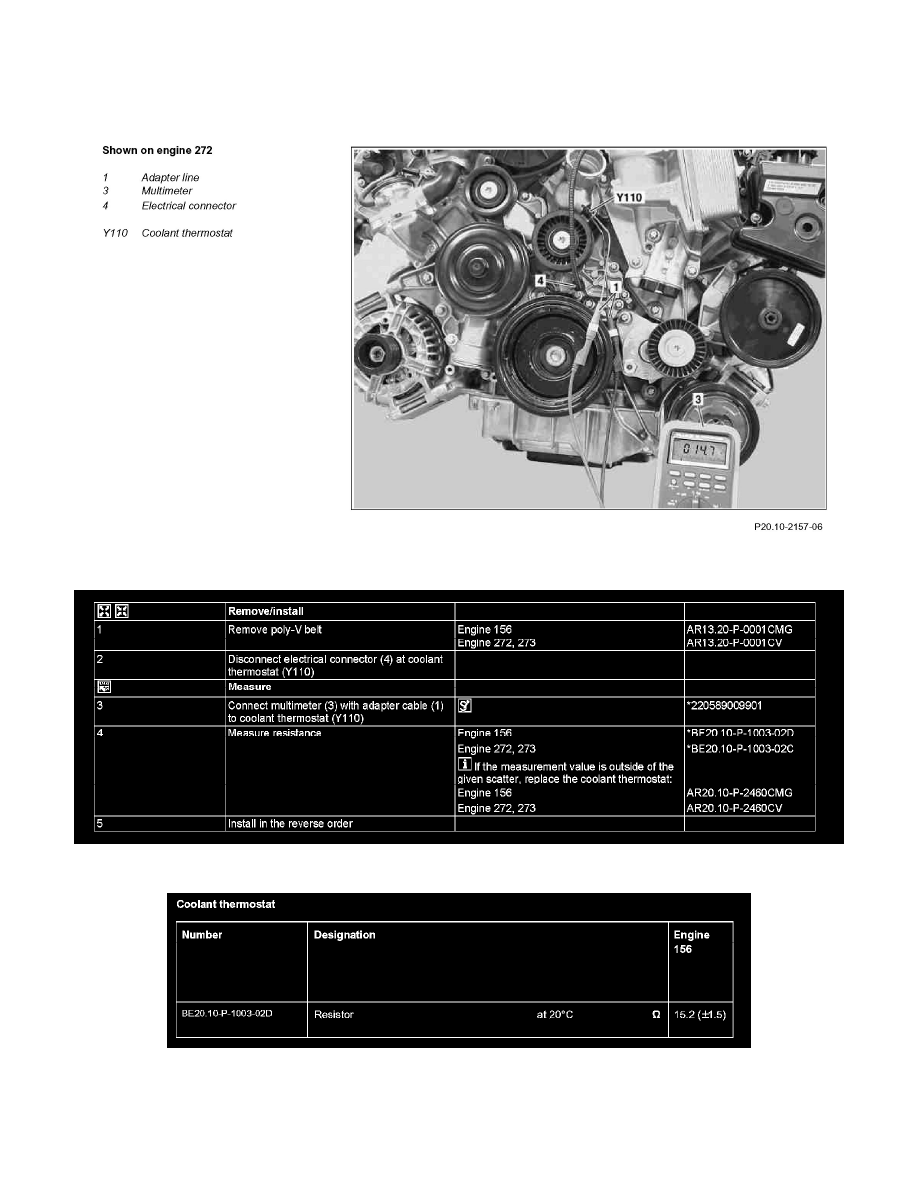

Thermostat: Testing and Inspection
AR20.10-P-2455CV Test Coolant Thermostat

AR20.10-P-2455CV Test coolant thermostat

Component Identification

Steps 1-5

Coolant thermostat
