E 550 Coupe (207.372) V8-5.5L (273.966) (2010)
Relays and Modules
Relays and Modules - Power and Ground Distribution
Relay Box / Component Information

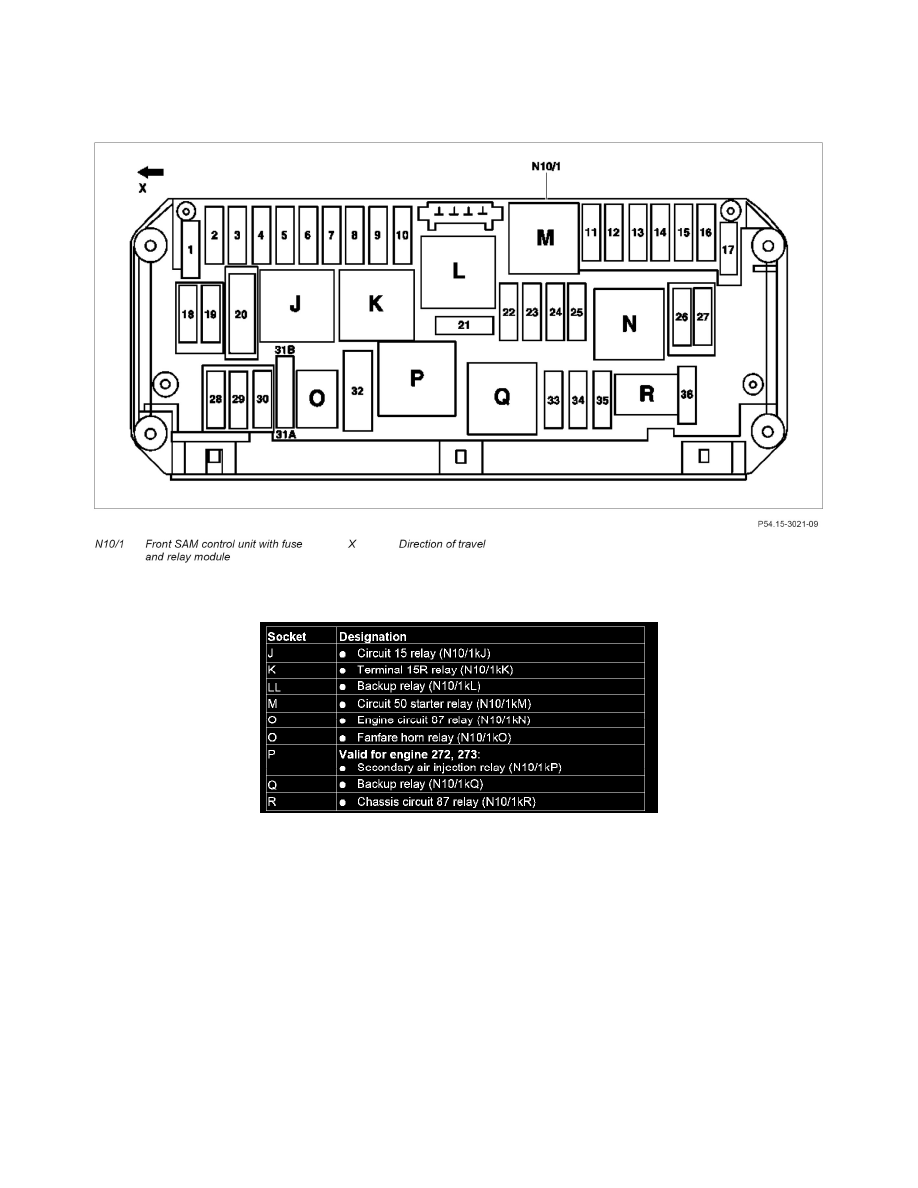

Description and Operation / GF54.15-P-1257-03CA Relay Assignment of Fuse and Relay Box In Left Side of Engine Compartment
Page 316
Page 4
Relays and Modules
Relays and Modules - Power and Ground Distribution
Relay Box / Component Information
Description and Operation / GF54.15-P-1257-03CA Relay Assignment of Fuse and Relay Box In Left Side of Engine Compartment
Page 316
