GL 320 CDI (164.822) V6-3.0L DSL Turbo (642.940) (2008)
^
Option for coupling the front passenger temperature selection with that of the driver-side
^
Rear air conditioner remote control

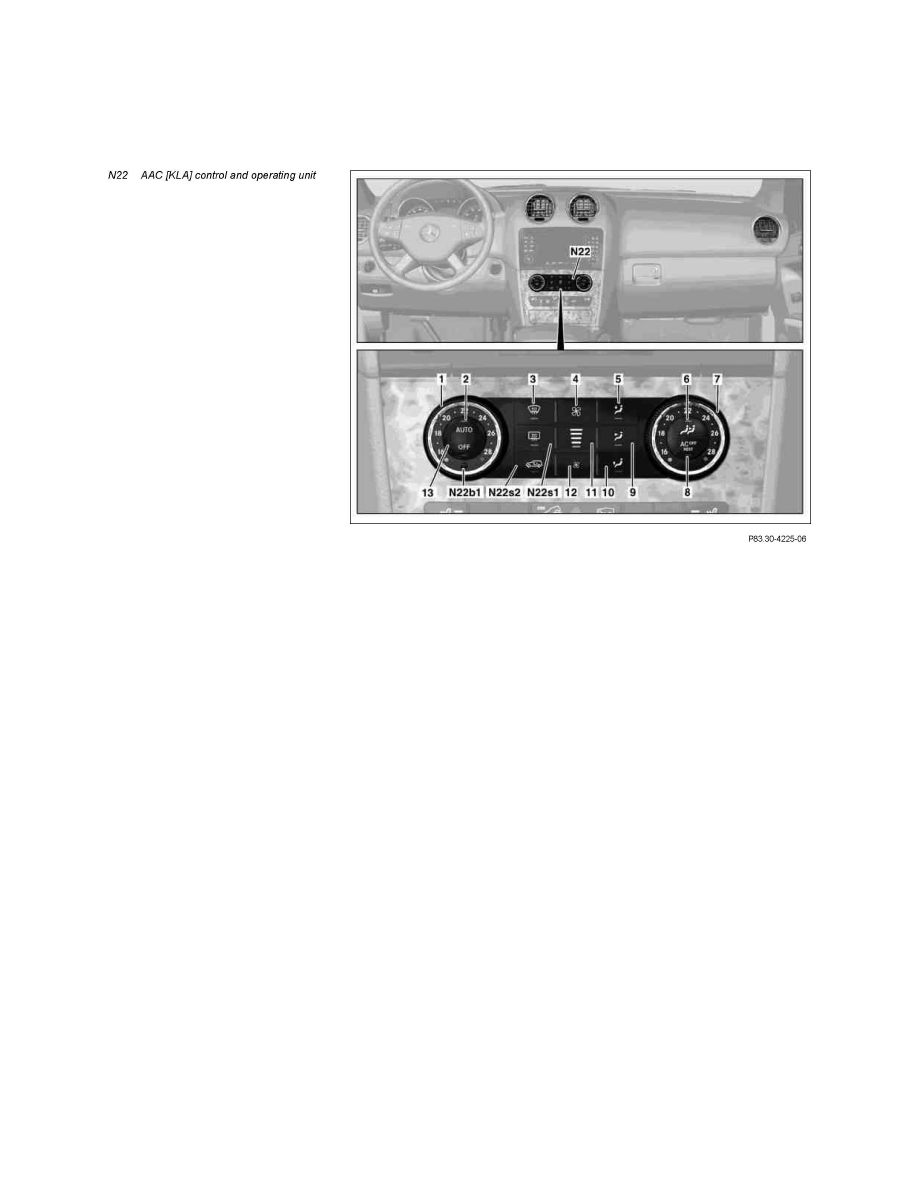

The comfort AAC control and operating unit is used to actuate the following:
Discreet:
^
Refrigerant compressor (A9)
^
Coolant circulation pump (M13)
^
Rear AC additional circulation pump (M13/1)
^
Coolant shutoff motor (M16/41)
^
Rear air conditioning blower regulator (N29/7)
^
AC system shutoff valve (Y19/1)
Via the Control Area Network bus, class B (interior compartment) (CAN B):
^
Heated rear window (R1) via rear SAM control unit (N10/8)
^
Engine and A/C electric suction fan with integrated control (M4/7) via the central gateway control unit (N93) on the ME control unit N3/10)
^
Recirculated air operation for windows and tilting/sliding roof (left front door control unit (N69/1), right front door control unit (N69/2), front
SAM control unit (N10), rear SAM control unit, and overhead control panel control unit (N70))
Via Local Interconnect Network (LIN):
^
Blower regulator (A32n1)
^
Rear air conditioning blower regulator
^
Dew point sensor (B11/12)
^
Fresh air flap/recirculated air flap actuator motor (M2/5)
^
Left blend air flap actuator (M2/6)
^
Right blend air flap actuator (M2/7)
^
Left defroster vent flap actuator motor (M2/8)
^
Right defroster vent flap actuator motor (M2/9)
^
Left footwell flap actuator motor (M2/10)
^
Right footwell flap actuator motor (M2/11)
^
Rear shutoff flap actuator motor (M2/12)
^
Rear air distribution flap actuator motor (M2/21)
^
Left center air flap actuator motor (M16/23)
^
Right center air flap actuator motor (M16/24)
^
Diverter flap actuator motor (M16/27)
^
3rd seat row air distribution actuator motor (M16/43)
^
3rd seat row blend air flap actuator motor (M16/44)
The following sensor signals are read in by the comfort AAC control and operating unit:
^
In-car temperature sensor (N22b1)
^
Refrigerant pressure sensor (B12)
^
Evaporator temperature sensor (B10/6)
^
Rear air conditioning evaporator temperature sensor (B10/11)
^
Dual sun sensor (B32/3)
^
Center rear interior temperature sensor (B10/7)
^
Left side outlet temperature sensor (B10/31)
^
Right side outlet temperature sensor (B10/32)
^
Left center outlet temperature sensor (B10/33)
^
Right center outlet temperature sensor (B10/34)
^
Left footwell temperature sensor (B10/35)
^
Right footwell temperature sensor (B10/36)
^
Rear headroom AC temperature sensor (B10/37)
^
Footwell rear AC temperature sensor (B10/38)
^
Outside temperature indicator temperature sensor (B14)
^
Emissions sensor (B31)
Via LIN bus:
dew point sensor (B11/12)
Via CAN B:
^
Overhead control panel control unit
-
Rain/light sensor (B38/2)
^
EIS control unit (N73)
-
Circuit status
^
Central gateway control unit and via ME control unit
