R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)
Powertrain Management
Computers and Control Systems
Sensors and Switches - Computers and Control Systems
Crankshaft Position Sensor / Crankshaft Hall Sensor
Page 8645
Page 3

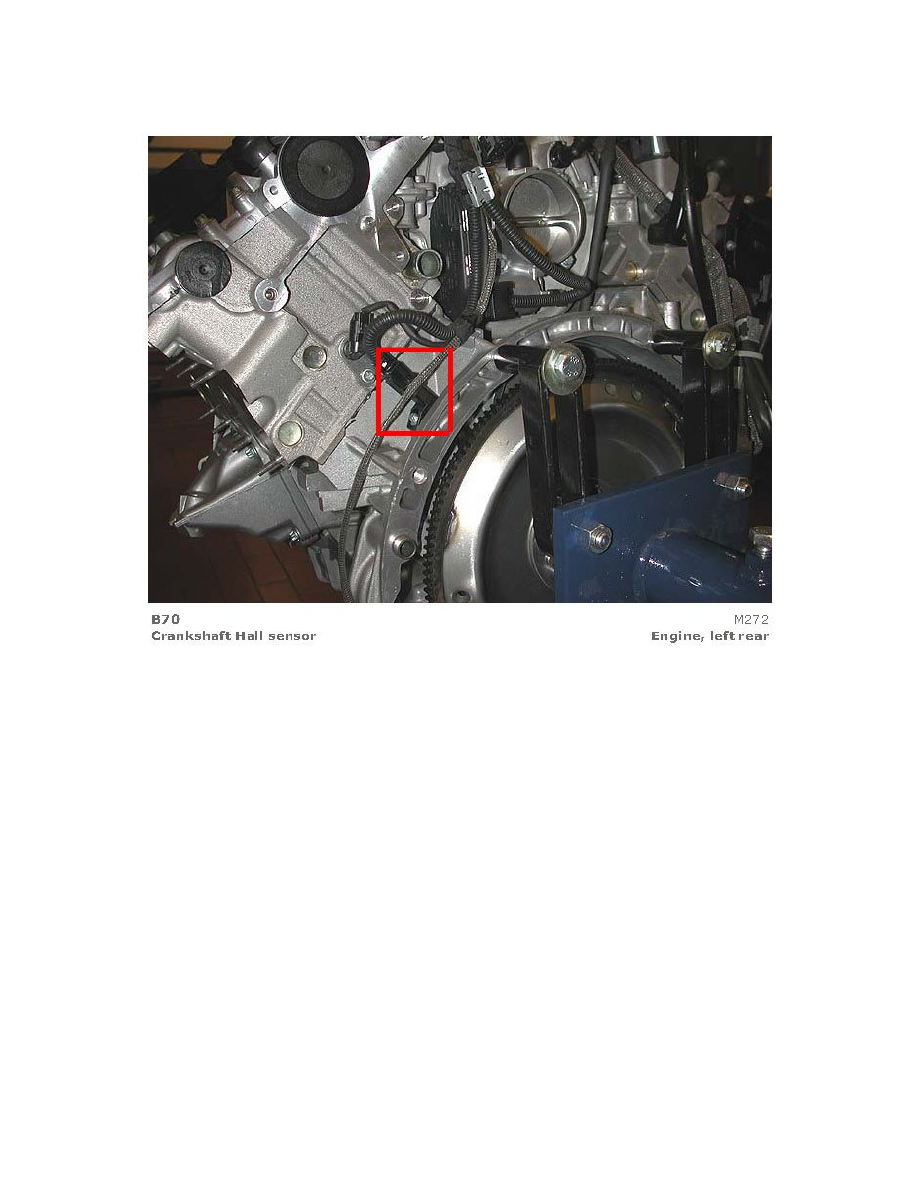

Crankshaft Hall Sensor (View 3)
