R 63 AMG (251.177) V8-6.3L (156.980) (2007)
Sensors and Switches
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Manifold Pressure/Vacuum Sensor / Locations
Page 2161
Page 5

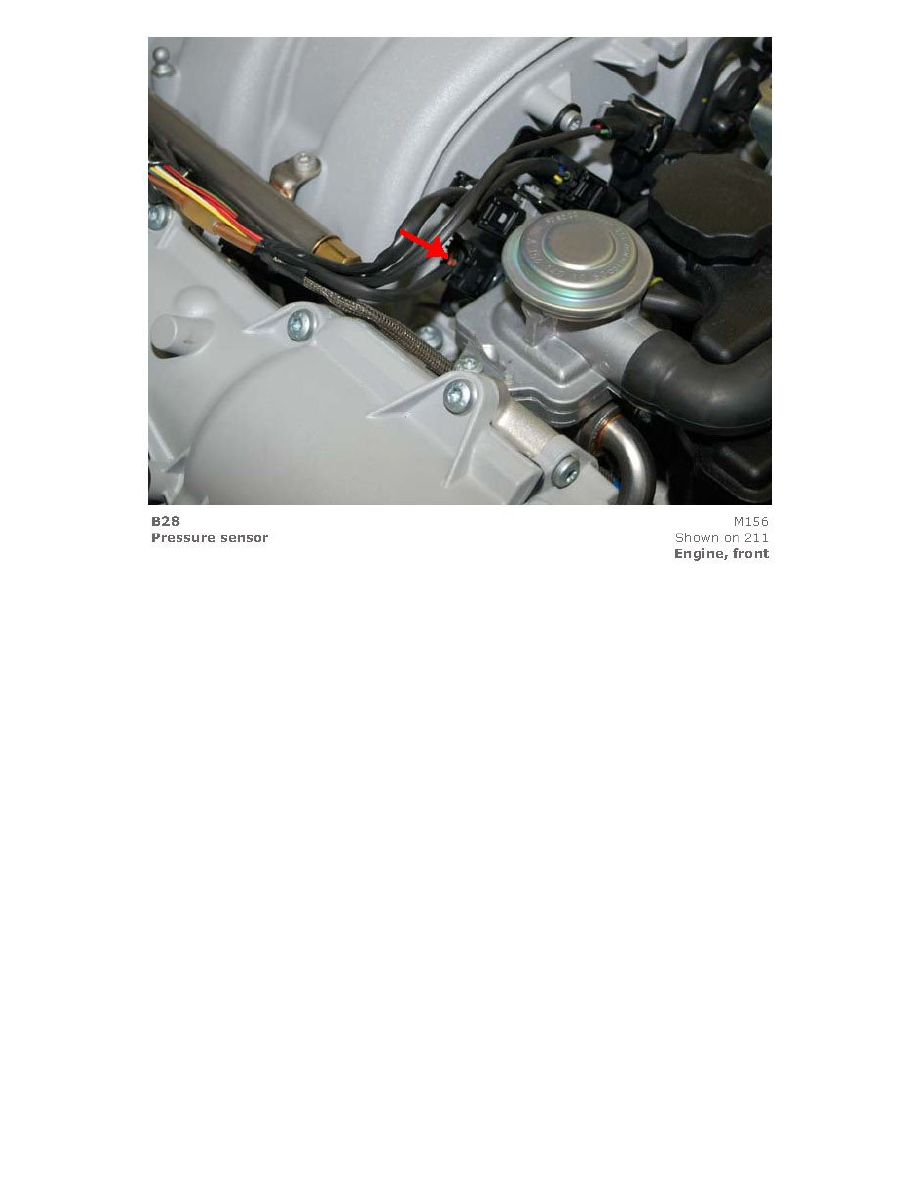

Pressure Sensor (View 5)
Sensors and Switches
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Manifold Pressure/Vacuum Sensor / Locations
Page 2161
