Keyless Entry Module: Description and Operation
Infrared remote control module (N54) up to 08/95

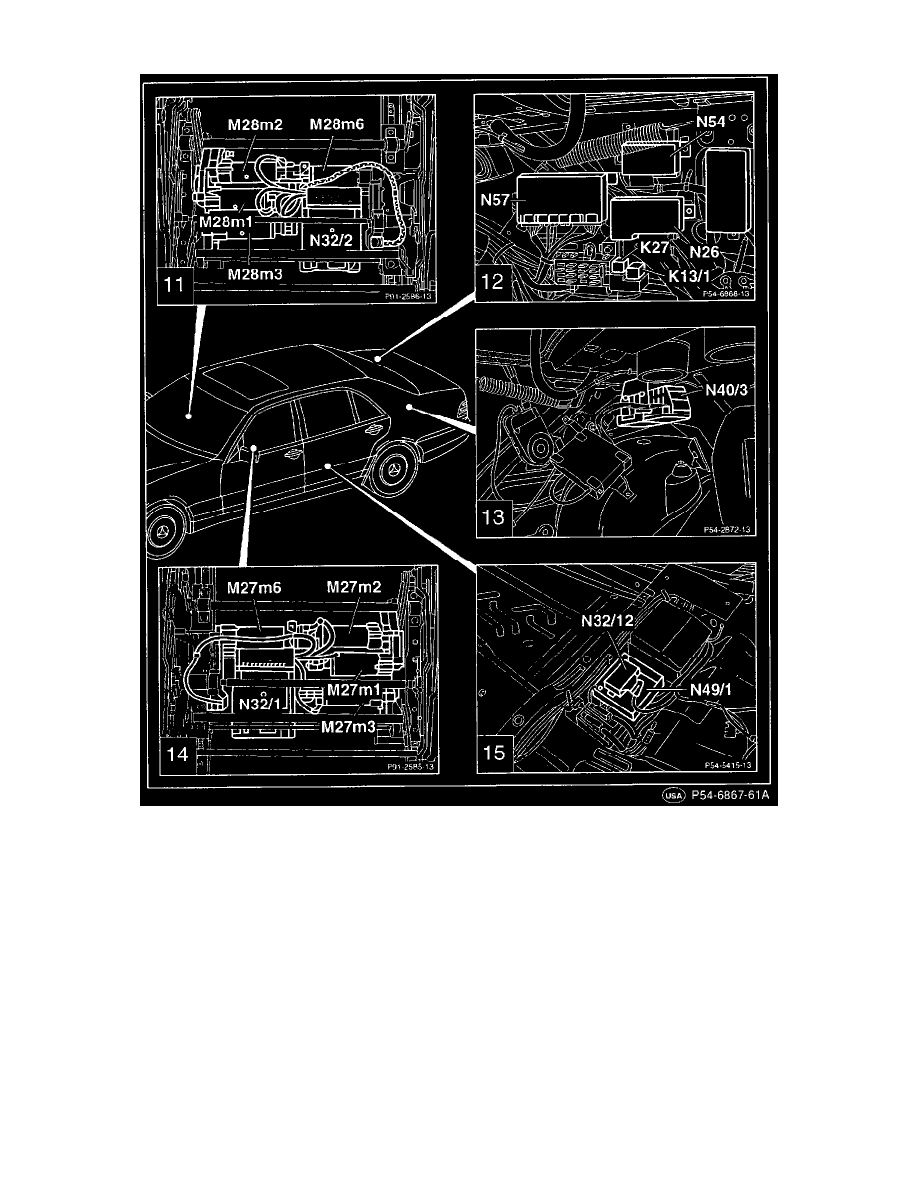

The control module in the sedan is located on the reinforcement on the right of the trunk. The control module in the coupe is positioned below the left
rear seat. The electrical connection is provided with a plug-in and withdrawal aid. To withdraw, press locking lug and pull up coupling on the cable side.
When replacing the control module or the transmitter, always indicate the locking mechanism number since both parts are matched to one another.
Infrared remote control module (N54) as of 09/95
The control module is located at the front right of the firewall behind the passenger airbag (behind airduct).
The 12-pin electrical connection is provided with a plug-in and withdrawal aid. To withdraw, press locking lug and fold over clamp. The 2-pin electrical
connection is secured with a lock. Press locking lug and push lock to the side.
