Ultrasonic Sensor: Service and Repair

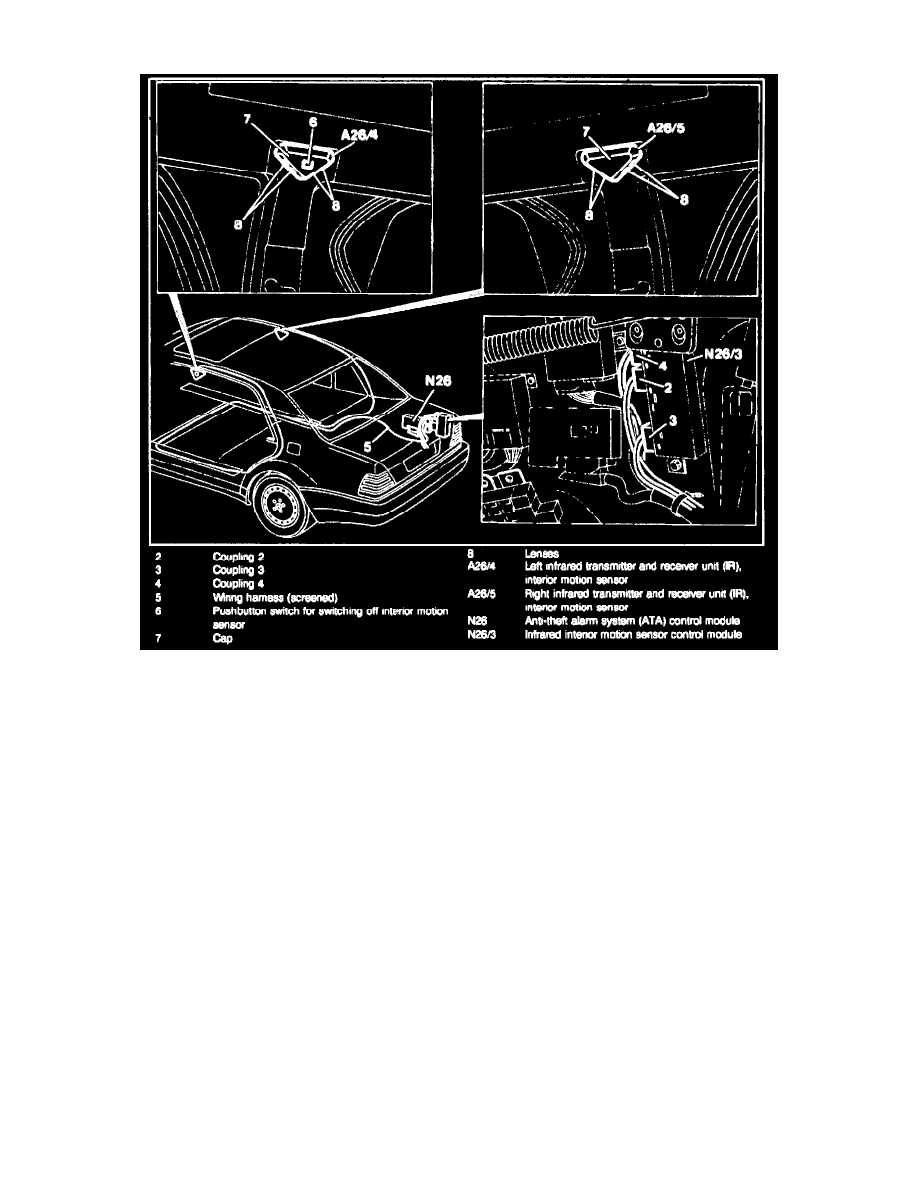

Replacing Infrared (IR) Transmitter and Receiver Unit, Interior Motion Sensor (A26/4, A26/5)
Cap (7)
press off, press on.
NOTE: When installing, ensure cap locks in place properly.
Trim at top of center pillar (11), remove.
Screws (8, 9) at transmitter and receiver unit (A26/4, A26/5)
unscrew, screw in.
Connector (10)
unplug, plug in.
Transmitter and receiver unit (A26/4, A26/5)
take off, fit on.
NOTE: Perform function check.
