S 65 AMG (220.179) V12-6.0L Turbo (275.981) (2006)

Page 1
background image

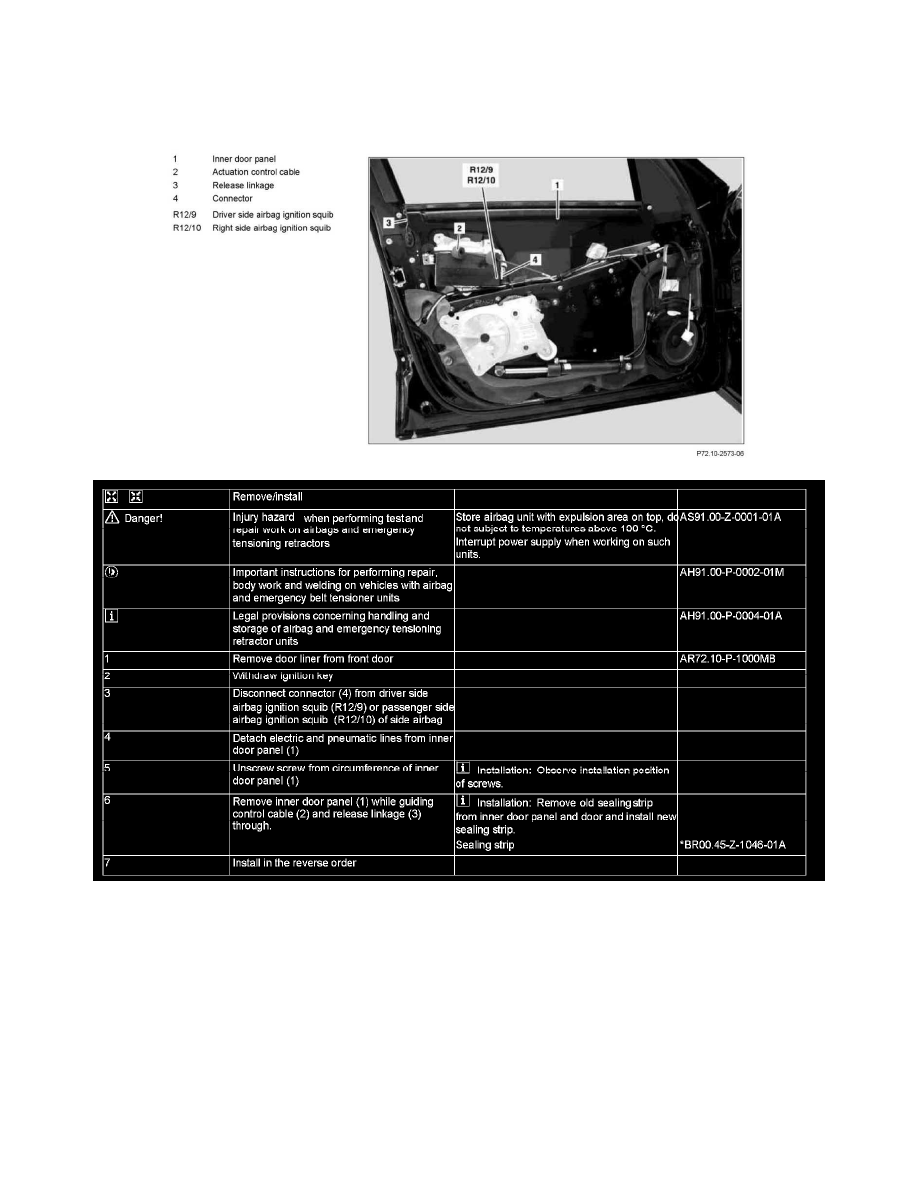

Front Door Panel: Service and Repair
AR72.10-P-1000MB Remove/Install Door Lining on Front Door

AR72.10-P-1000MB Remove/Install Door Lining on Front Door

- with CODE (Z07) Top protection
