SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)
1
Remove instrument panel
2

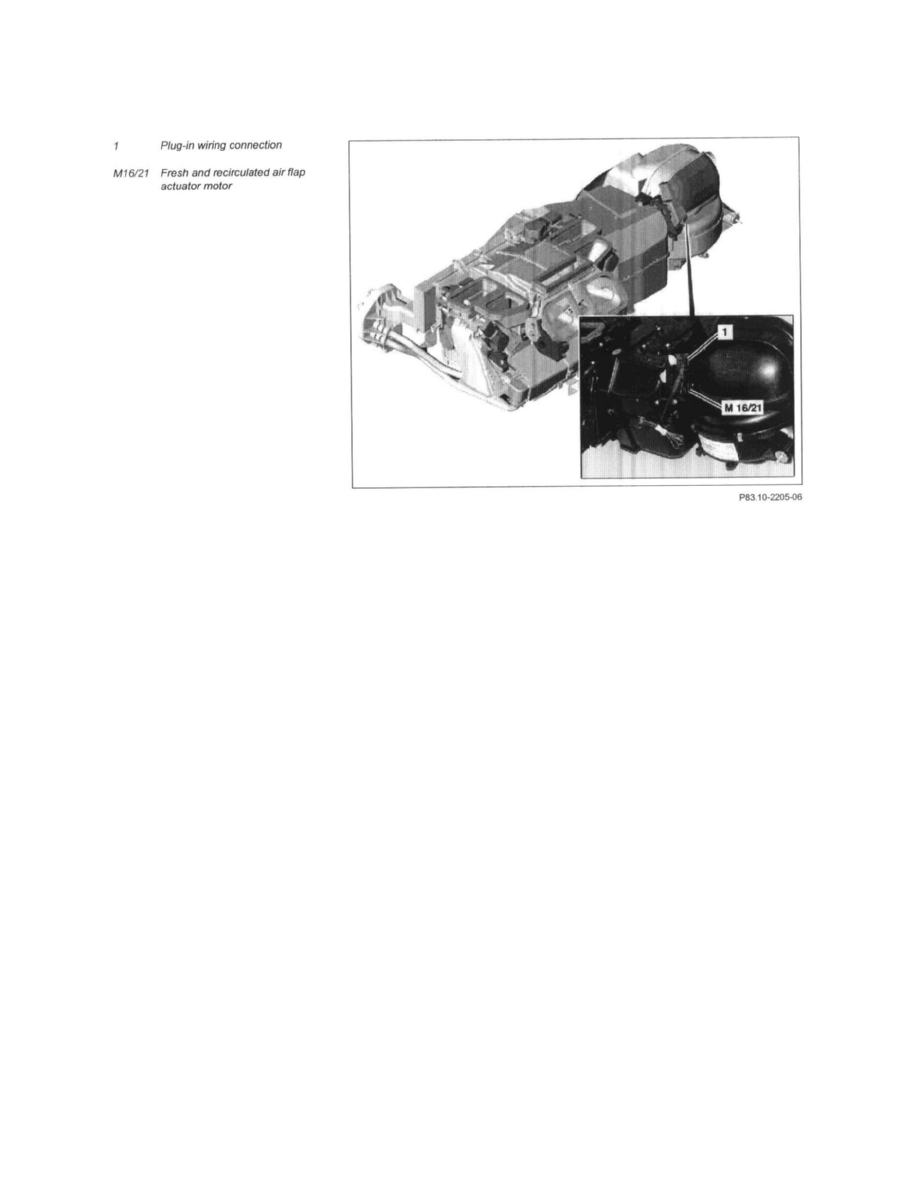

Disconnect electrical connector (1) from right footwell flap actuator motor (M16/16)
3
Remove right footwell flap actuator motor (M16/16)
NOTE: Installation: Check condition of adjusting mechanism. If damage is found, obtain appropriate part from kinematics parts kit.
4
Install in the reverse order
5
Read out fault memory
6
Normalize actuator motor.
AR83.10-P-2014R Remove/Install Actuator For Diverter Flap
AR83.10-P-2014R Remove/Install Actuator For Diverter Flap
1
Remove instrument panel
2
Unscrew screws (2)
3
Disconnect electrical connectors from evaporator housing cover (1)
4
Remove evaporator housing cover (1)
