SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)
Powertrain Management
Fuel Delivery and Air Induction
Air Flow Meter/Sensor / Hot Film MAF Sensor
Page 8112
Page 2

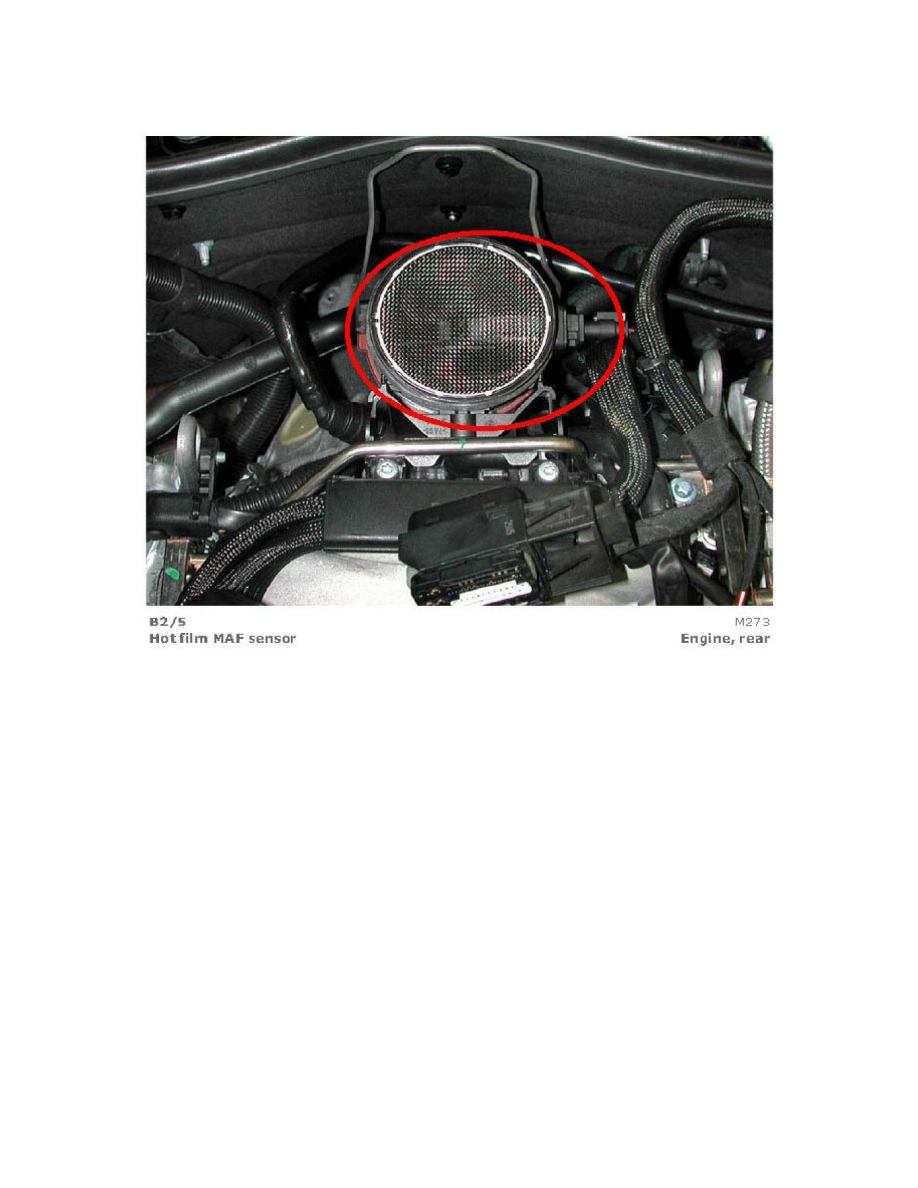

Left Hot Film MAF Sensor (View 2)
Powertrain Management
Fuel Delivery and Air Induction
Air Flow Meter/Sensor / Hot Film MAF Sensor
Page 8112
