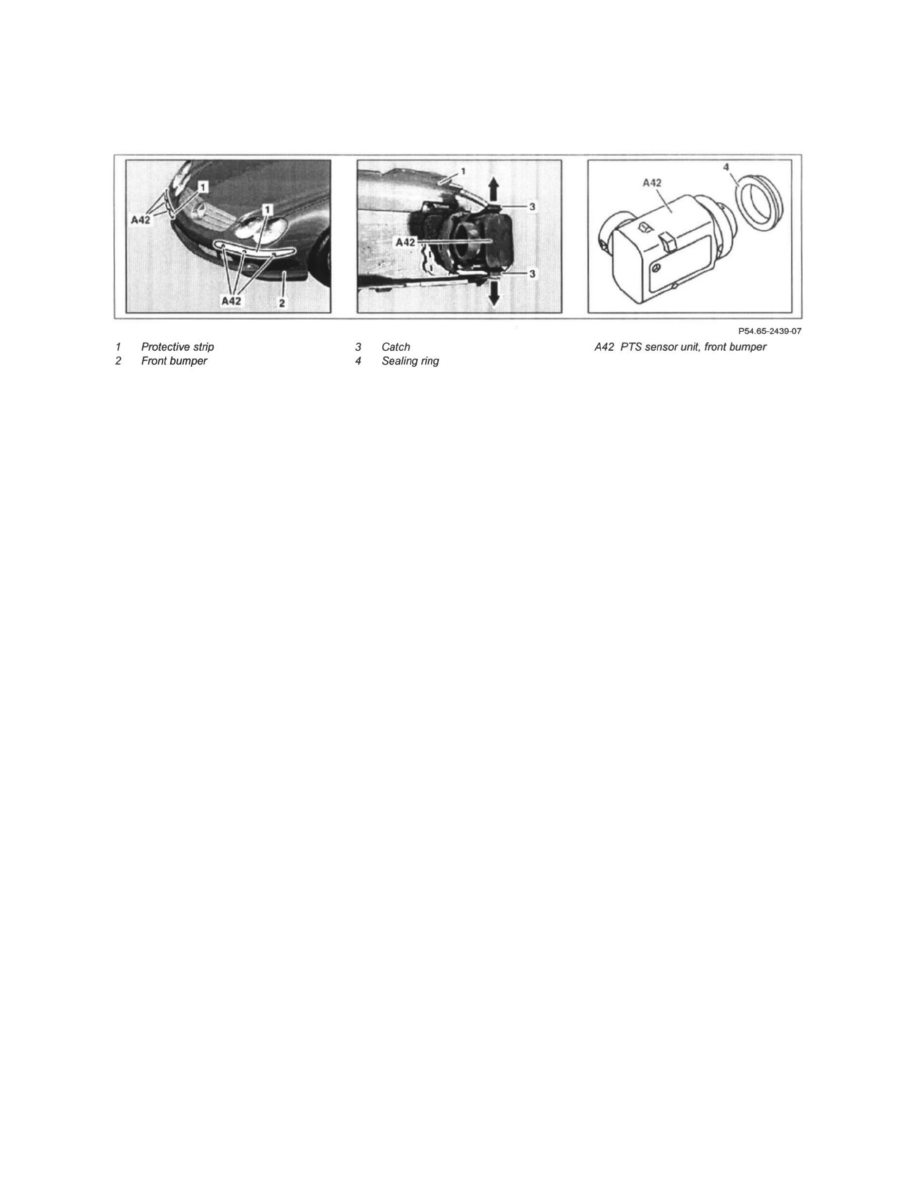

5. Connect 6-pin connector and 6-pin connector for ultrasonic back-up assist wiring harness (1) and ultrasonic sensor wiring harness (1a) to
ultrasonic PTS rear bumper connector (X35/29) and fasten.
6. Route ultrasonic back-up assist wiring harness (1) to passenger compartment through cable passage (see arrow).
7. Route tieout with 3-pin connector for rear warning element (A44/3) to installation location on rear wall along present leads and fasten.
Contrary to illustration it is necessary to remove the rollover bar stowage shell because the cable duct offers little clearance for subsequent routing.
8. Route ultrasonic back-up assist wiring harness (1) to rear fuse and relay module (K40/5) along present lead and continue to potential distributor
(CAN B) rear (X30/17) and fasten.
