SL 600 (230.477) V12-5.5L Turbo (275.954) (2007)

Page 1
background image

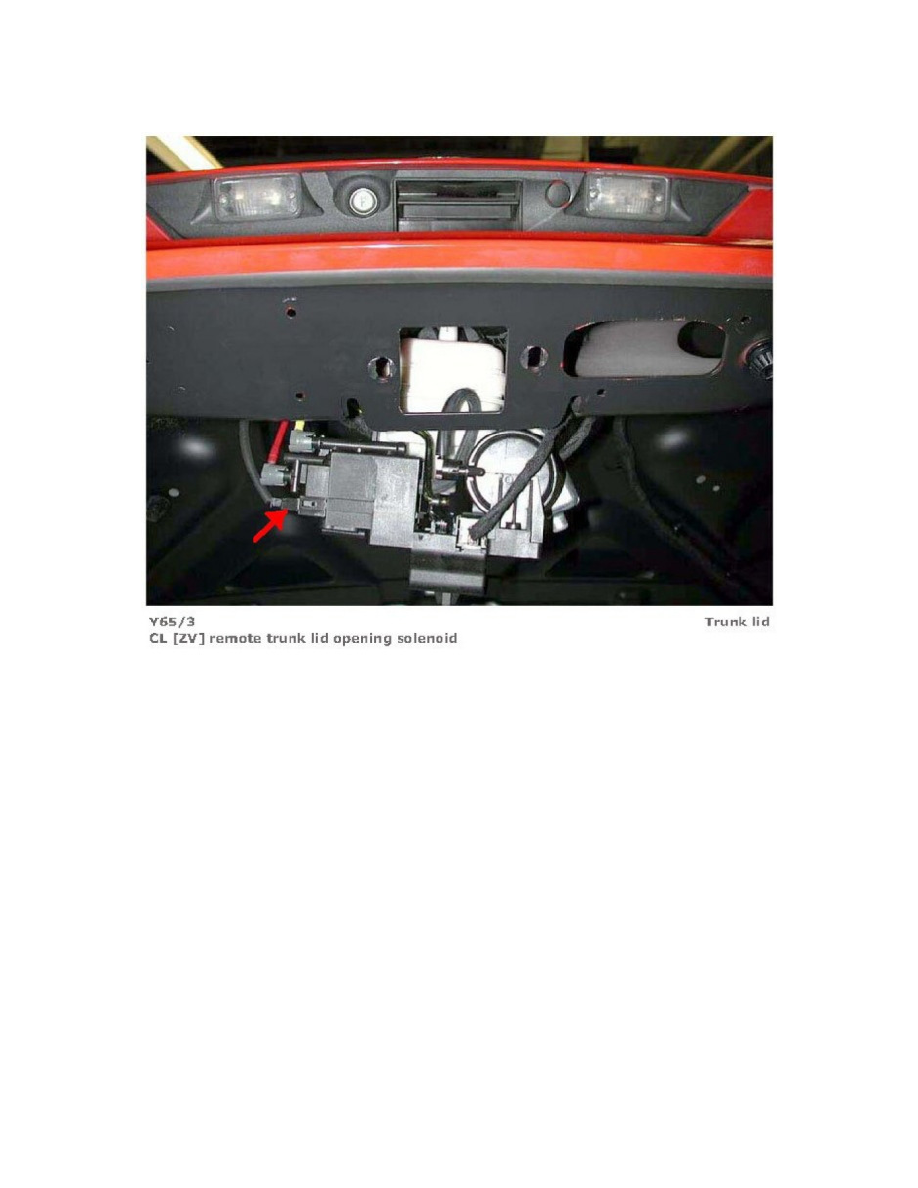

Trunk / Liftgate Solenoid: Locations
Trunk Lid Remote Closing Solenoid Valve

Trunk Lid Remote Closing Solenoid Valve

Trunk Lid Remote Closing Solenid Valve (View 1)
