Convertible Top Hydraulic Cylinder: Description and Operation
GF77.37-P-3081R Vario Roof Tubular Frame Actuating Hydraulic Cylinder,
Location/Purpose/Design/ Function

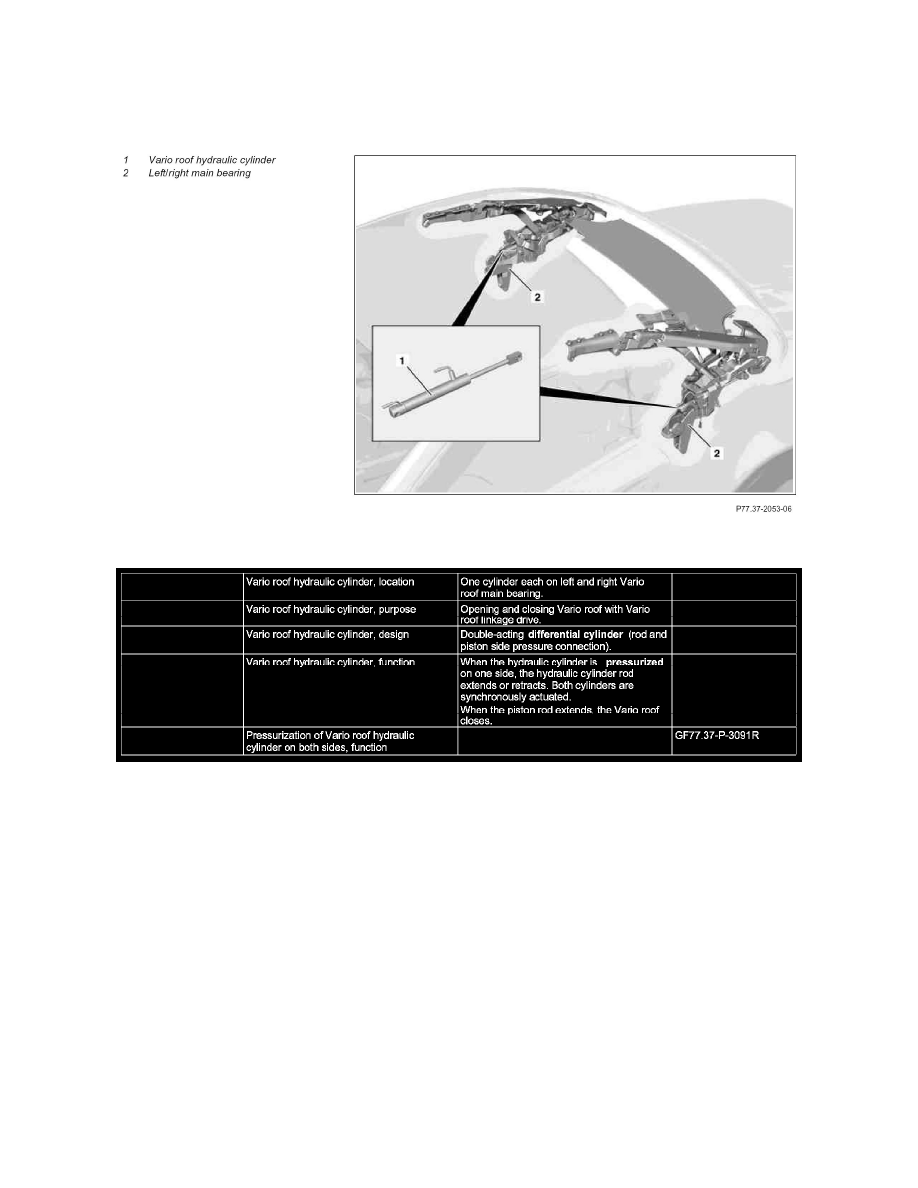

GF77.37-P-3081R Vario Roof Tubular Frame Actuating Hydraulic Cylinder, Location/Purpose/Design/ Function

- up to model year 08

Component Identification
