SL 600 (230.477) V12-5.5L Turbo (275.954) (2007)
Powertrain Management
Ignition System

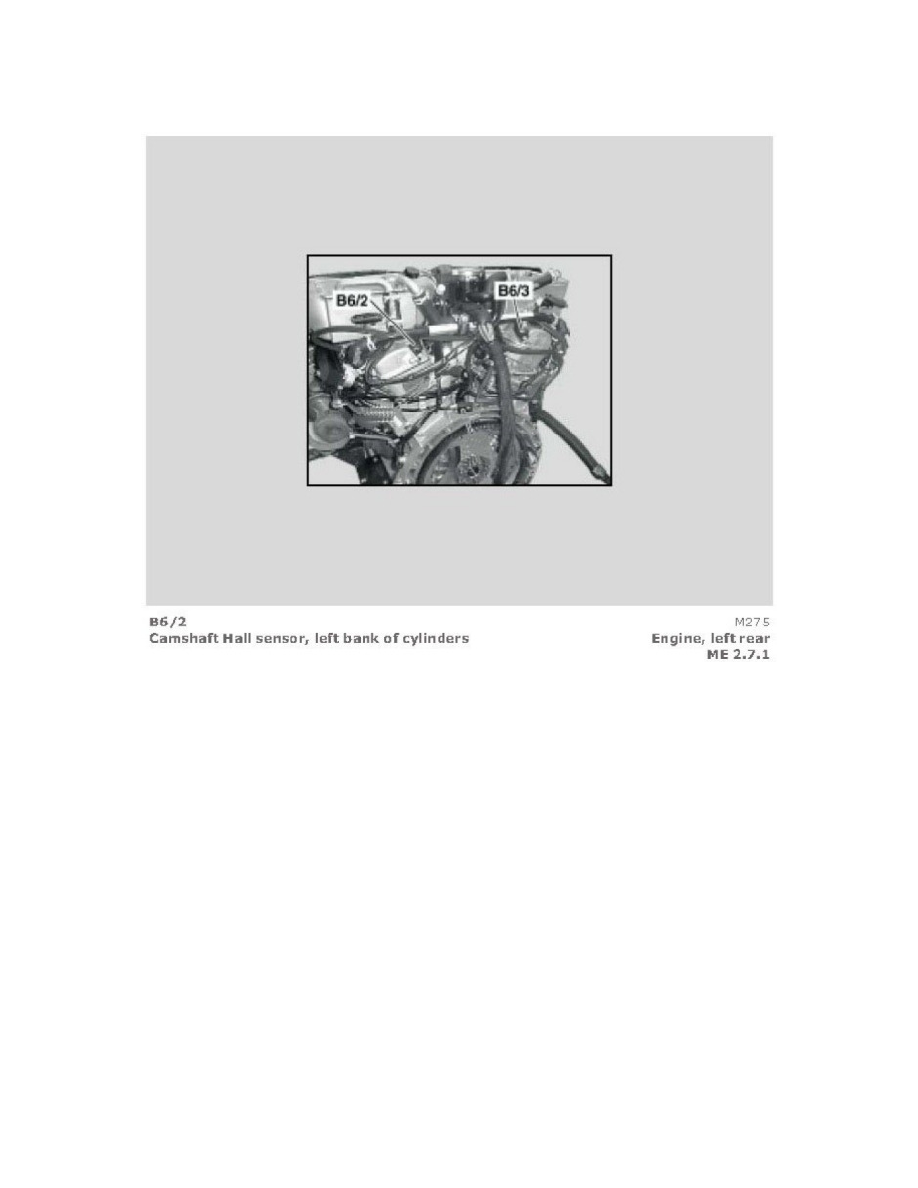

Camshaft Position Sensor / Camshaft Hall Sensor, Left Bank of Cylinders
Page 7066
Page 19
Right Exhaust Camshaft Hall Sensor (View 1)
Powertrain Management
Ignition System
Camshaft Position Sensor / Camshaft Hall Sensor, Left Bank of Cylinders
Page 7066
