SLK 230 (170.449) L4-2.3L SC (111.983) (2001)
A1
Instrument cluster
A1e26
CHECK ENGINE malfunction indicator lamp ((USA))
A1e58
Engine diagnosis malfunction indicator lamp
CAN
Databus (Controller Area Network)
G3/1
O2 sensor downstream of TWC
G3/2
O2 sensor upstream of TWC
K27
Fuel pump relay (model 170)
N10/1
Front SAM control module with fuse and relay module (model 203)
N10/1kO Front SAM control module with fuse and relay module, secondary air injection relay
N10/1kR Front SAM control module with fuse and relay module, circuit 87 engine relay
N10/1kS Front SAM control module with fuse and relay module, starter relay N10/2 Rear SAM control module with fuse and relay module (model
203)
N10/2kA Rear SAM control module with fuse and relay module, fuel pump relay
K40/4
Fuse and relay module (model 202, 208, 210)
K40/4k1 Fuel pump relay
K40/4k2 Starter relay
K40/4k3 Air pump relay
M16/6
Throttle valve actuator
M16/7
Recirculating air flap actuator (supercharger)
N3/10
ME-SFI control module
N19
A/C pushbutton control module
N22
Air conditioning (Automatic) (Automatic) A / C pushbutton control module
N65k2
Starter relay (model 170)
N76
Engine/AC electric suction fan control module
T1/1
Ignition coil 1
T1/2
Ignition coil 2
T1/3
Ignition coil 3
T1/4
Ignition coil 4
X11/4
Diagnostic socket
Y32
AIR pump switchover valve
Y49
Variable camshaft timing solenoid
Y58/1
Purge control valve
Y58/4
Activated charcoal canister shutoff valve ((USA))
Y62
Fuel injectors

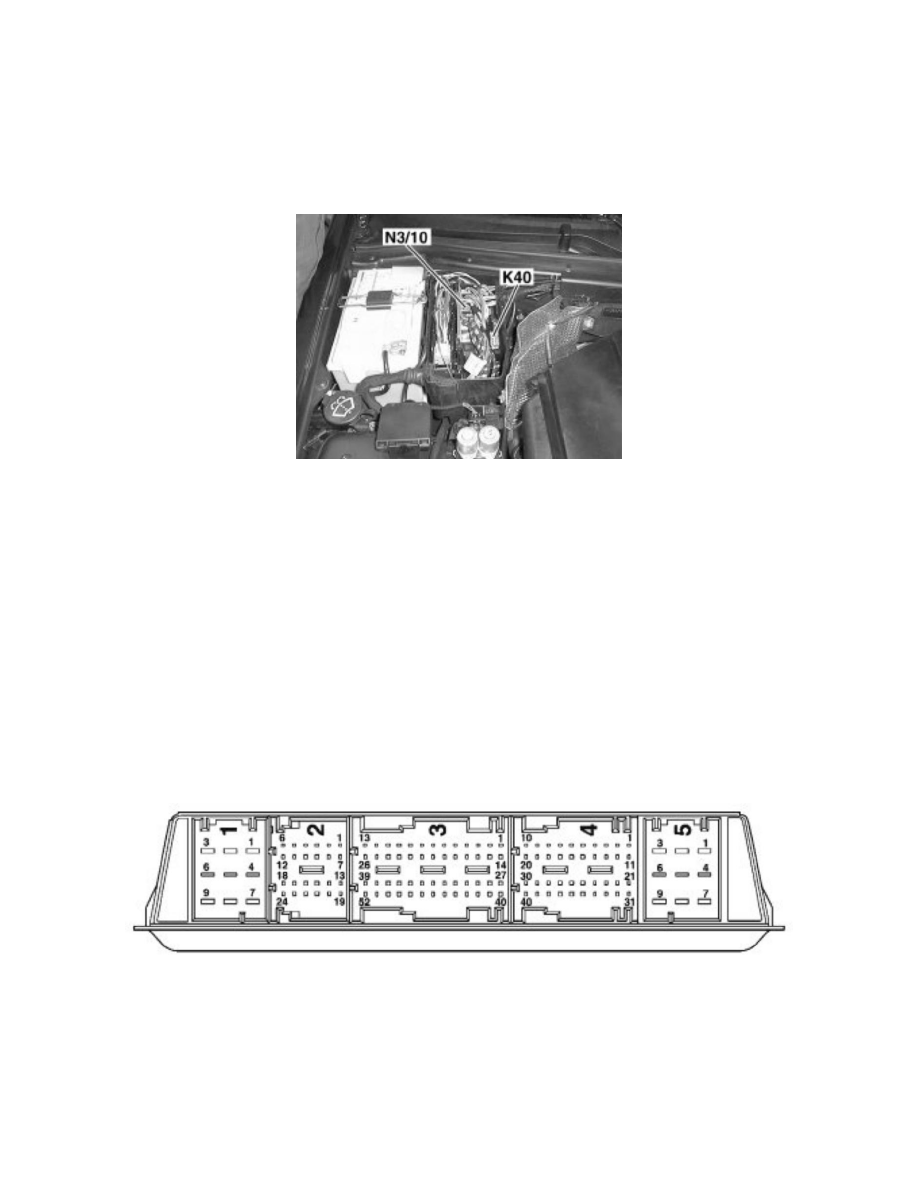

Voltage Supply of ME-SFI Control Unit Function
Voltage supply of ME-SFI control unit function
