Mariner 2WD V6-3.0L VIN 1 (2006)

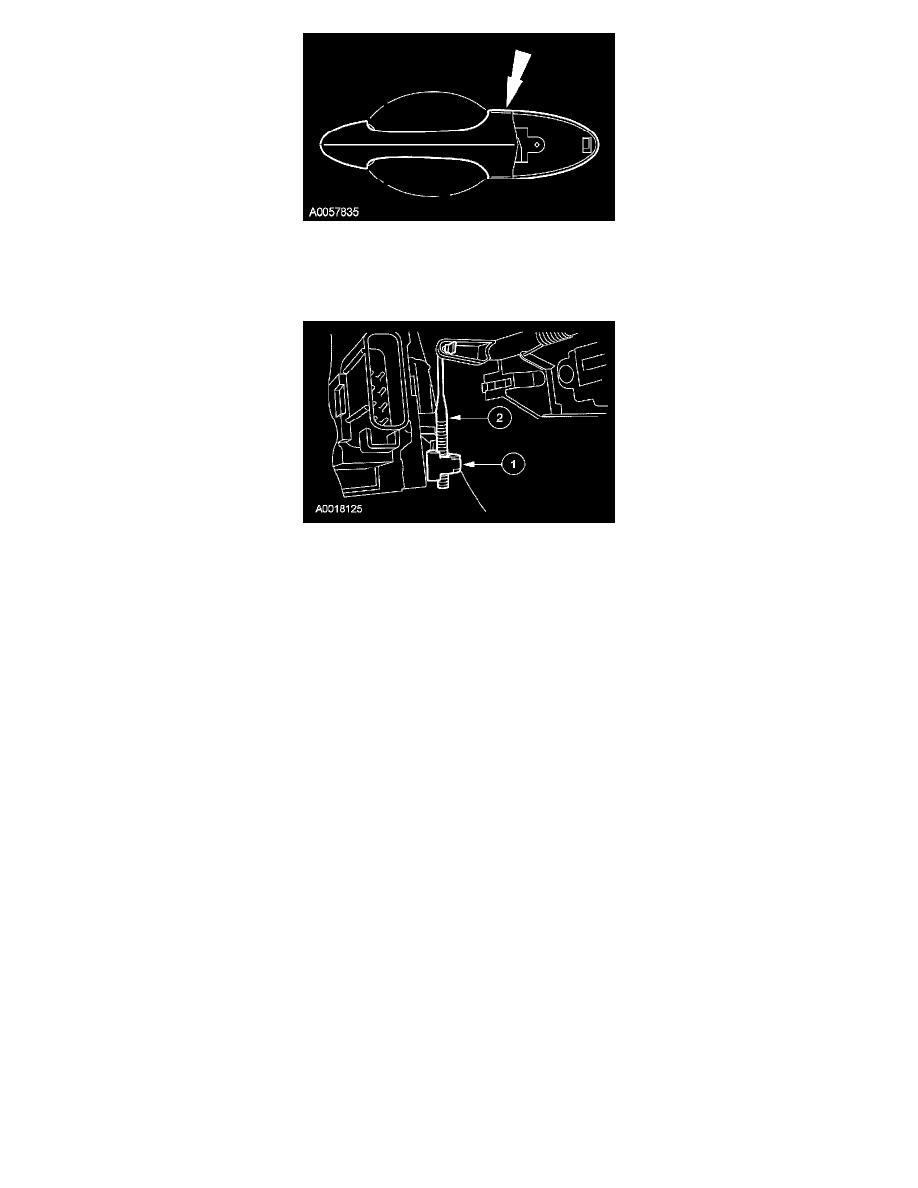

6. Remove the exterior door handle by sliding the handle towards the rear of the vehicle.
7. Remove the 2 exterior door handle seals.
Exterior Rear Door Handle Reinforcement
8. Disconnect the exterior door handle actuating rod.
1
Open the clip.
2
Disconnect the actuating rod.
9. Slide the exterior door handle toward the front of the vehicle and remove the reinforcement.
10. To install, reverse the removal procedure.
