Mariner 2WD V6-3.0L VIN 1 (2006)

Page 1
background image

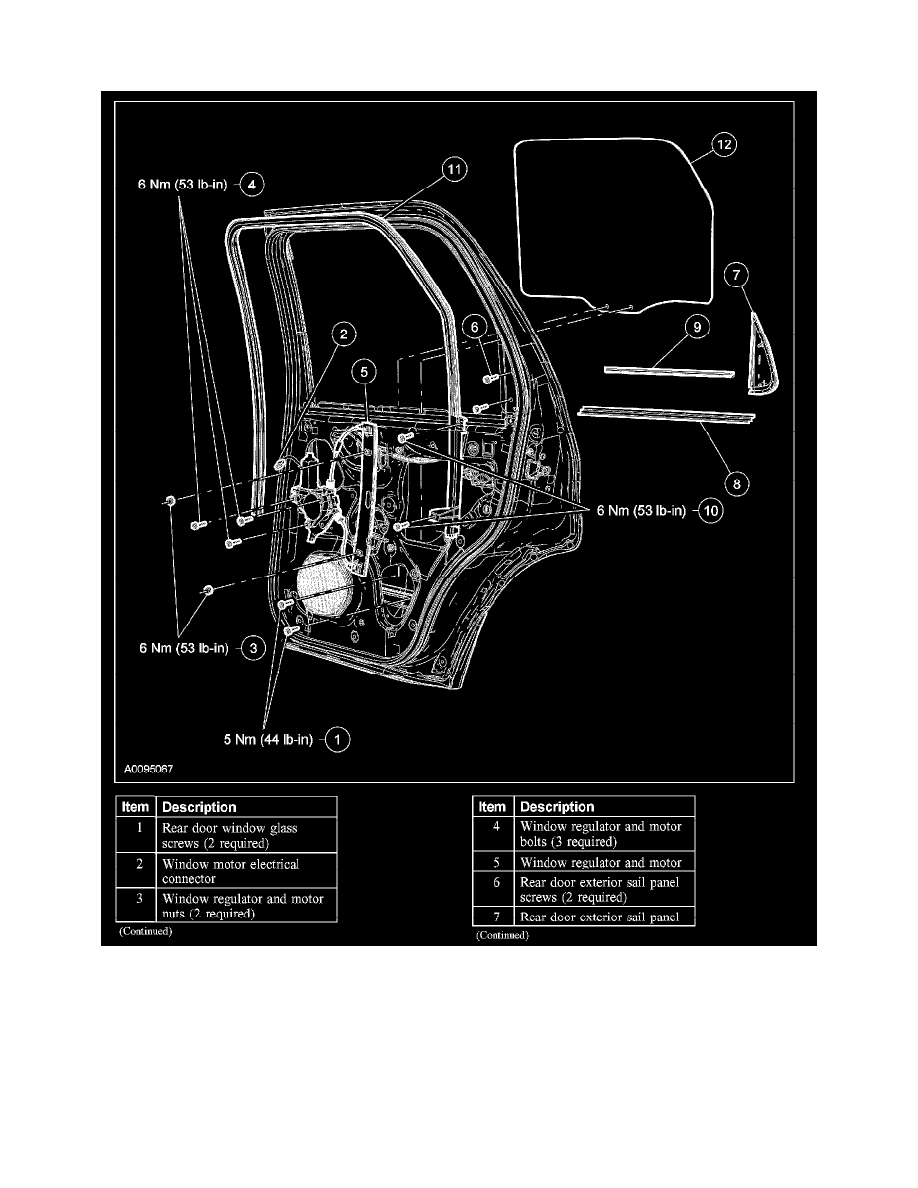

Rear Door Window Regulator: Service and Repair

REAR DOOR WINDOW REGULATOR

Part 1
