Mariner 2WD V6-3.0L VIN 1 (2006)

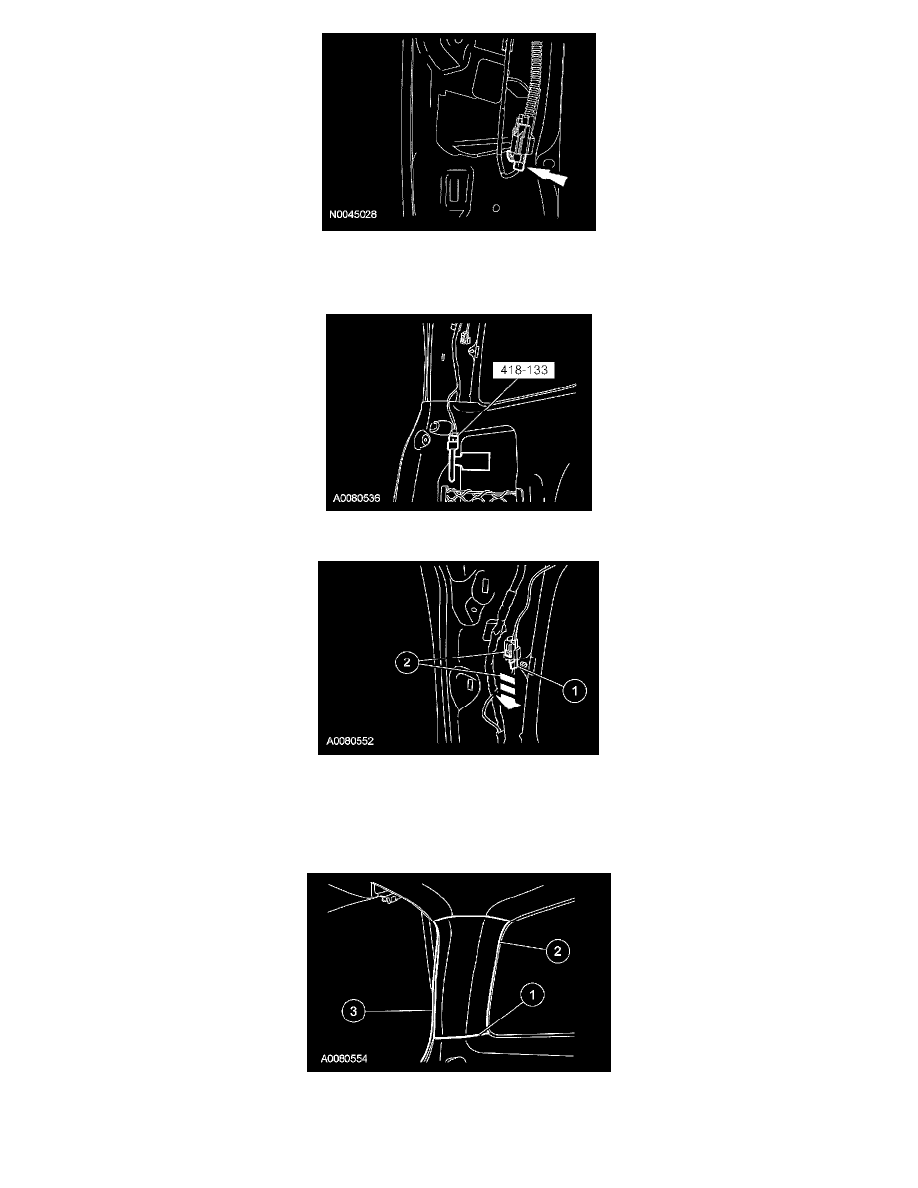

8. Connect the driver side safety canopy module electrical connector.
Early build vehicles
9. Remove the restraint system diagnostic tool from the vehicle harness side of the driver side safety canopy module electrical connector.
10. Connect the driver side safety canopy module electrical connector.
1
Connect the driver side safety canopy module electrical connector.
2
Slide and engage the driver side safety canopy module electrical connector locking clip.
Vehicles with safety canopies and seat side air bags
11. Install the driver side D-pillar trim panel.
1
Engage the D-pillar trim panel to the quarter trim panel.
2
Install the D-pillar trim panel.
