Mariner 2WD V6-3.0L VIN 1 (2006)
All vehicles

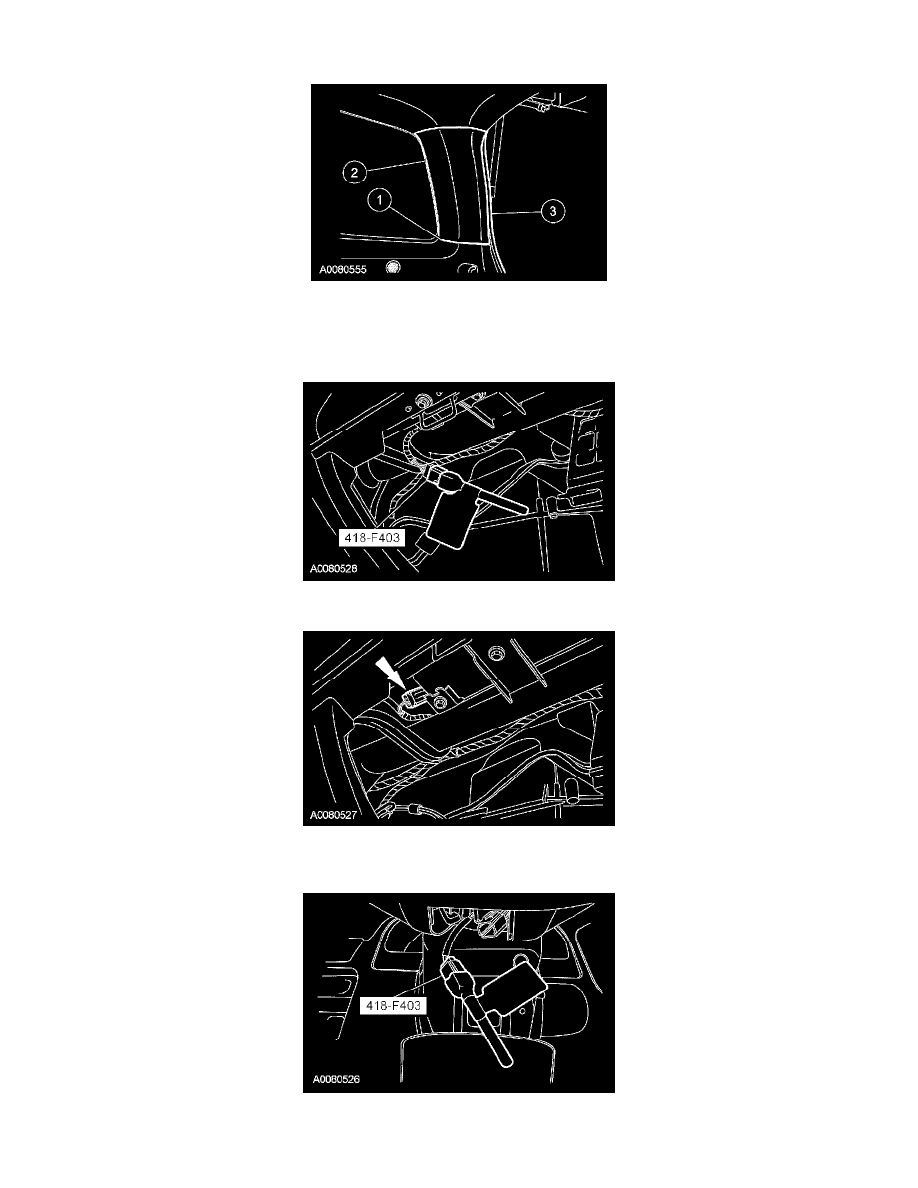

16. Install the passenger side D-pillar trim panel.
1
Engage the D-pillar trim panel to the quarter trim panel.
2
Install the D-pillar trim panel.
3
Install the weatherstrip.
17. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger air bag module electrical connector.
18. Through the glove compartment opening, connect the passenger air bag module electrical connector.
19. Close the glove compartment.
20. Remove the restraint system diagnostic tool from the clockspring electrical connector at the top of the steering column.
