Mariner 2WD V6-3.0L VIN 1 (2006)
-
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate
a supplemental restraint system (SRS) fault.
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
-
The driver seat and passenger seat are similar.
-
The power seat and manual seat are similar.
1. Remove the front seat and depower the supplemental restraint system (SRS).
2. Remove the front seat backrest.

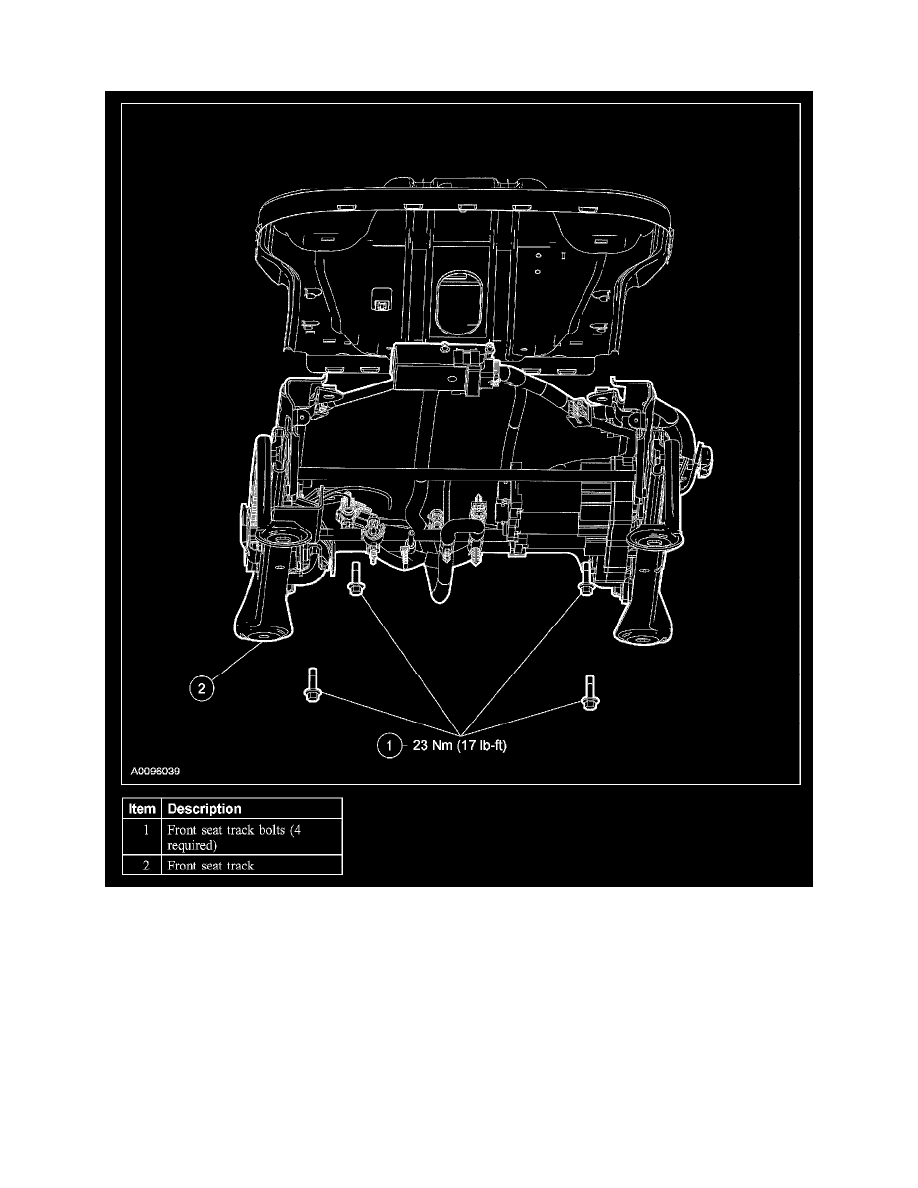

3. Remove the 4 front seat track bolts.
-
To install, tighten to 23 Nm (17 lb-ft).
4. Disconnect the wiring harness from the front seat track and remove the front seat track.
5. To install, reverse the removal procedure.
-
Transfer components as necessary.
6. Install the front seat and repower the supplemental restraint system (SRS).
