Mariner 2WD V6-3.0L VIN 1 (2006)
Material

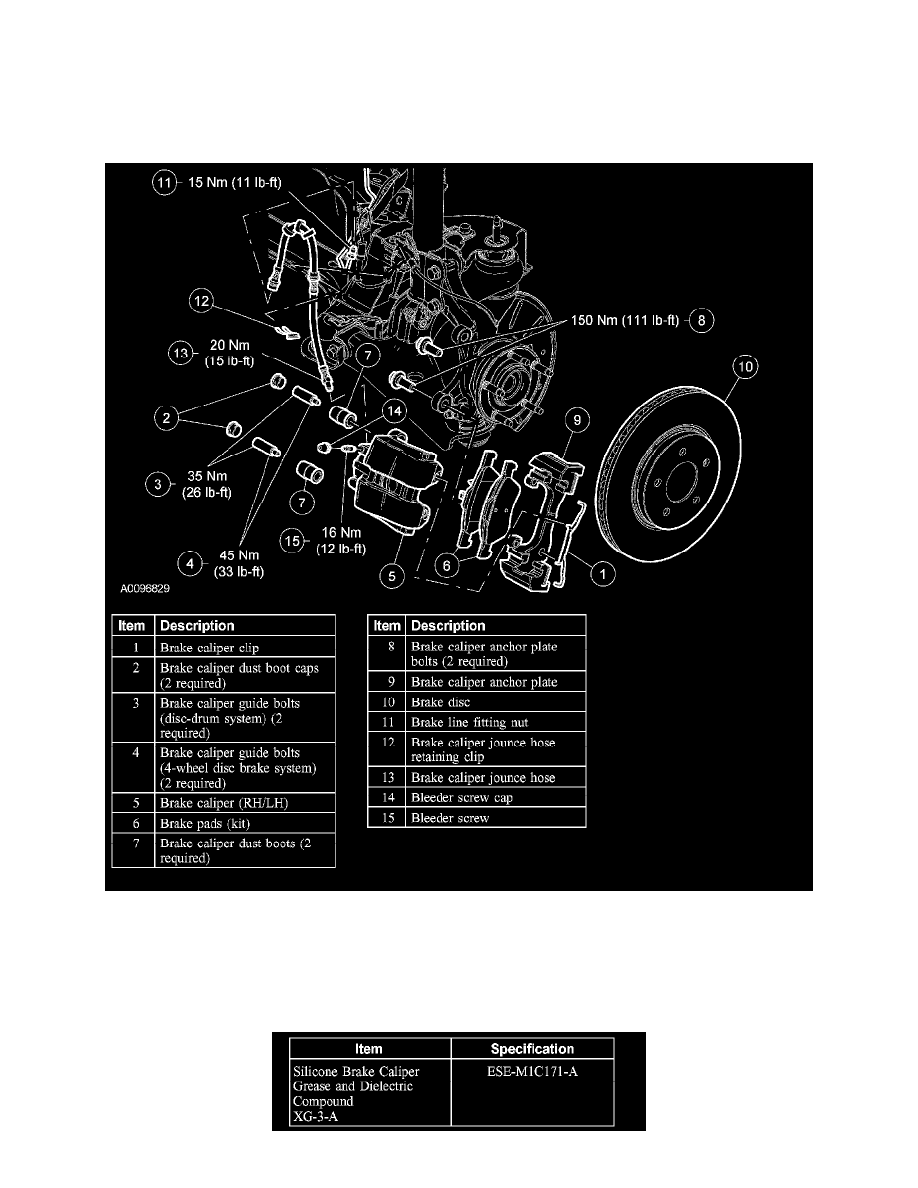

Front Disc Brake System - Exploded View
Material
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the brake caliper clip.
3. Remove the 2 brake caliper dust boot caps.
4. Remove the 2 brake caliper guide bolts.
^
To install, tighten to 35 Nm (26 ft. lbs.) on disc-drum system.
^
To install, tighten to 45 Nm (33 ft. lbs.) on 4-wheel disc brake system.
5. CAUTION: Do not allow the brake caliper to hang by the brake caliper jounce hose.
Remove the brake caliper and support the brake caliper to the vehicle.
6. Remove the inboard brake pad from the brake caliper.
7. Remove the outboard brake pad from the brake caliper anchor plate.
8. To install, reverse the removal procedure.
