Mariner 2WD V6-3.0L VIN 1 (2006)
Condenser Connection
Removal and Installation
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of
contamination from a failed A/C compressor or damage to the suction accumulator.
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Recover refrigerant.
3. Remove the front bumper cover.
4. Remove the RH splash shield.
5. If equipped, disconnect the block heater electrical connector.

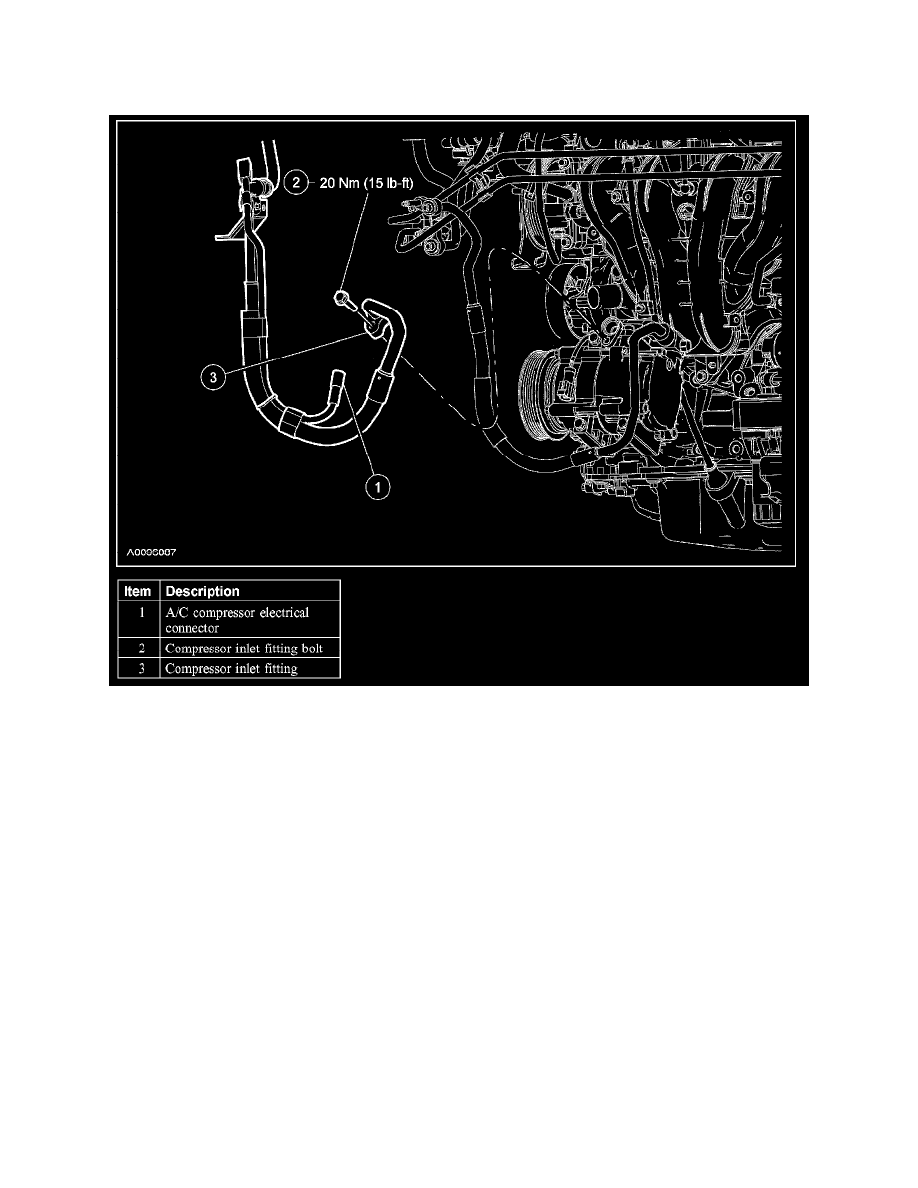

6. Remove the compressor outlet fitting bolt and disconnect the fitting.
-
Discard the O-ring seal.
-
To install, tighten to 20 Nm (15 lb-ft).
7. Remove the condenser inlet fitting nut and disconnect the fitting.
-
Discard the O-ring seal.
-
To install, tighten to 8 Nm (71 lb-in).
8. Remove the compressor-to-condenser discharge line.
9. To install, reverse the removal procedure.
-
Install new O-ring seals.
-
Lubricate the refrigerant system with the correct amount of clean PAG oil.
10. Evacuate, leak test, and charge the refrigerant system.
Compressor Manifold and Tube Assembly
COMPRESSOR MANIFOLD AND TUBE ASSEMBLY
