Mariner 2WD V6-3.0L VIN 1 (2006)

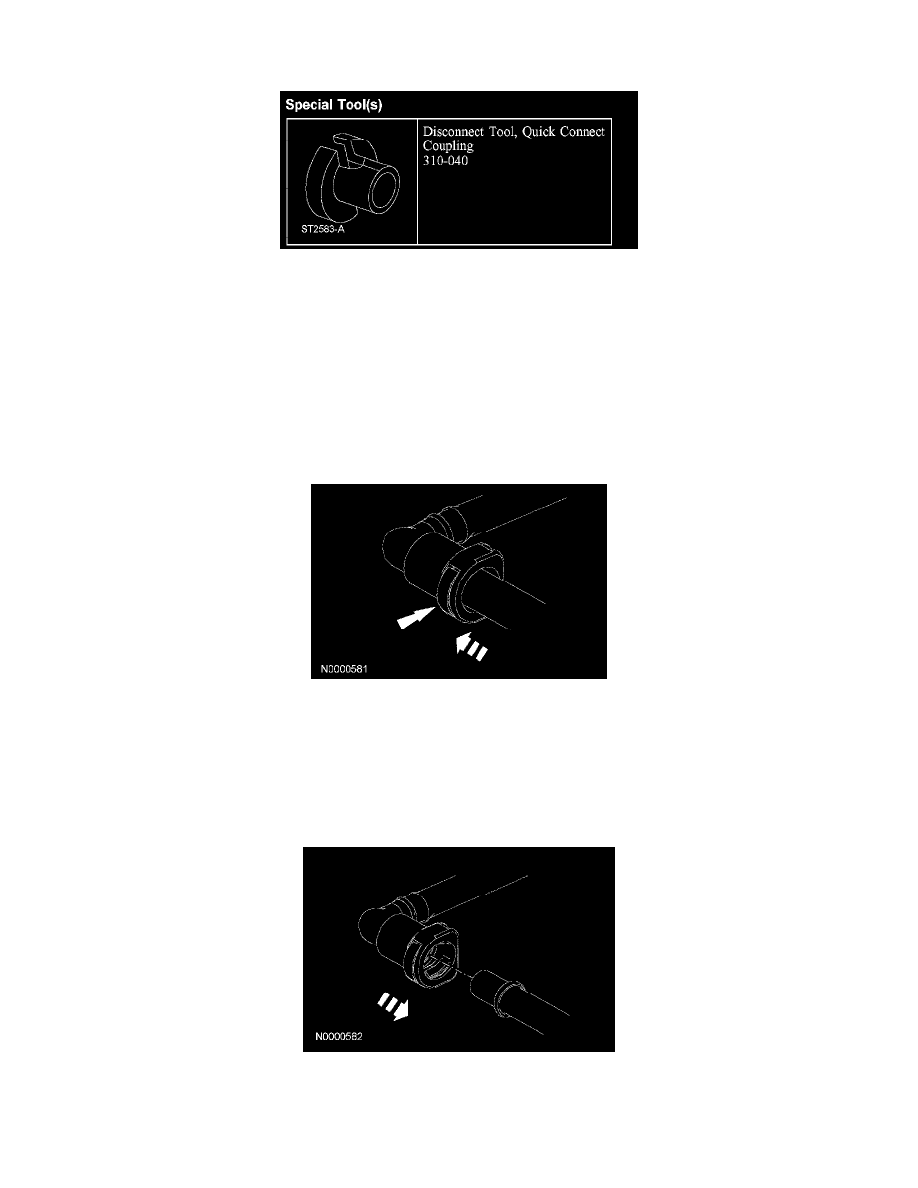

1. Squeeze the quick connect coupling retainer clip tabs to release the locking mechanism.
2. CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the
connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into
the connector.
Disconnect the quick connect coupling from the tube.
-
Push the locking mechanism outward to release the quick connect coupling.
-
Pull on the quick connect coupling and separate it from the tube.
Connect - Type V
1. CAUTION: Make sure the tube clicks into place when installing into the quick connect coupling. To make sure that the tube is fully
seated, pull on the tube.
NOTE: Apply clean engine oil to the O-ring seals.
Connect the quick connect coupling to the tube.
1
Install the quick connect coupling onto the tube until it is fully seated.
2
Depress the locking tab until it is flush with the quick connect coupling housing.
