Mariner 2WD V6-3.0L VIN 1 (2006)

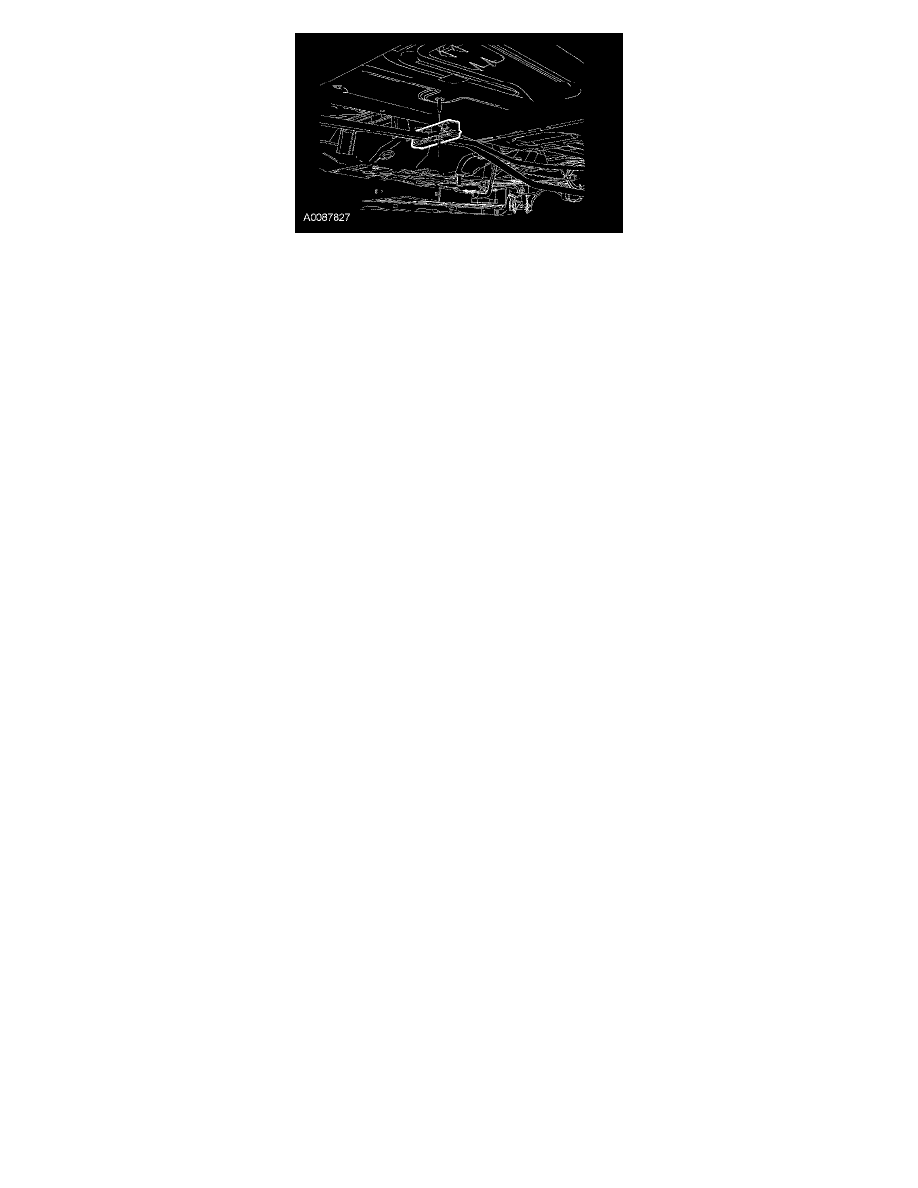

13. Unclip the fuel tube retainer clip from the mounting stud to service the fuel supply and vapor tubes as an assembly. The retainer clip will also open
to service the tubes individually.
-
Remove the fuel supply and fuel vapor tubes from the vehicle.
Installation
1. Install the fuel supply tube and fuel vapor tubes.
-
Make sure the retainer clips snap into place when installing onto the studs. Pull on the clips to make sure they are correctly seated.
2. NOTE: Make sure the tubes are correctly snapped into the clip and the clip is snapped securely into the subframe.
Install the fuel supply and fuel vapor tubes into the frame-mounted retainer clips.
3. Connect the fuel supply jumper tube and fuel vapor tube quick connect couplings.
4. Connect the fuel vapor tube quick connect coupling to the EVAP canister purge valve.
5. Install the fuel vapor tube.
-
Attach the fuel vapor tube retainer.
6. Connect the fuel vapor tube quick connect coupling to the EVAP canister purge valve.
7. Connect the fuel vapor tube to the intake manifold.
-
Reposition the clamp.
8. Install the fuel supply tube and connect the quick connect coupling.
9. Connect the fuel tube quick connect coupling.
10. Install the air cleaner outlet pipe.
11. Connect the battery ground cable.
12. Turn the ignition key to the ON position to pressurize the fuel system.
13. Visually inspect the fuel system for leaks.
