Milan AWD L4-2.3L (2008)
Brake Rotor/Disc: Removal and Replacement
Disc Removal and Installation, Front

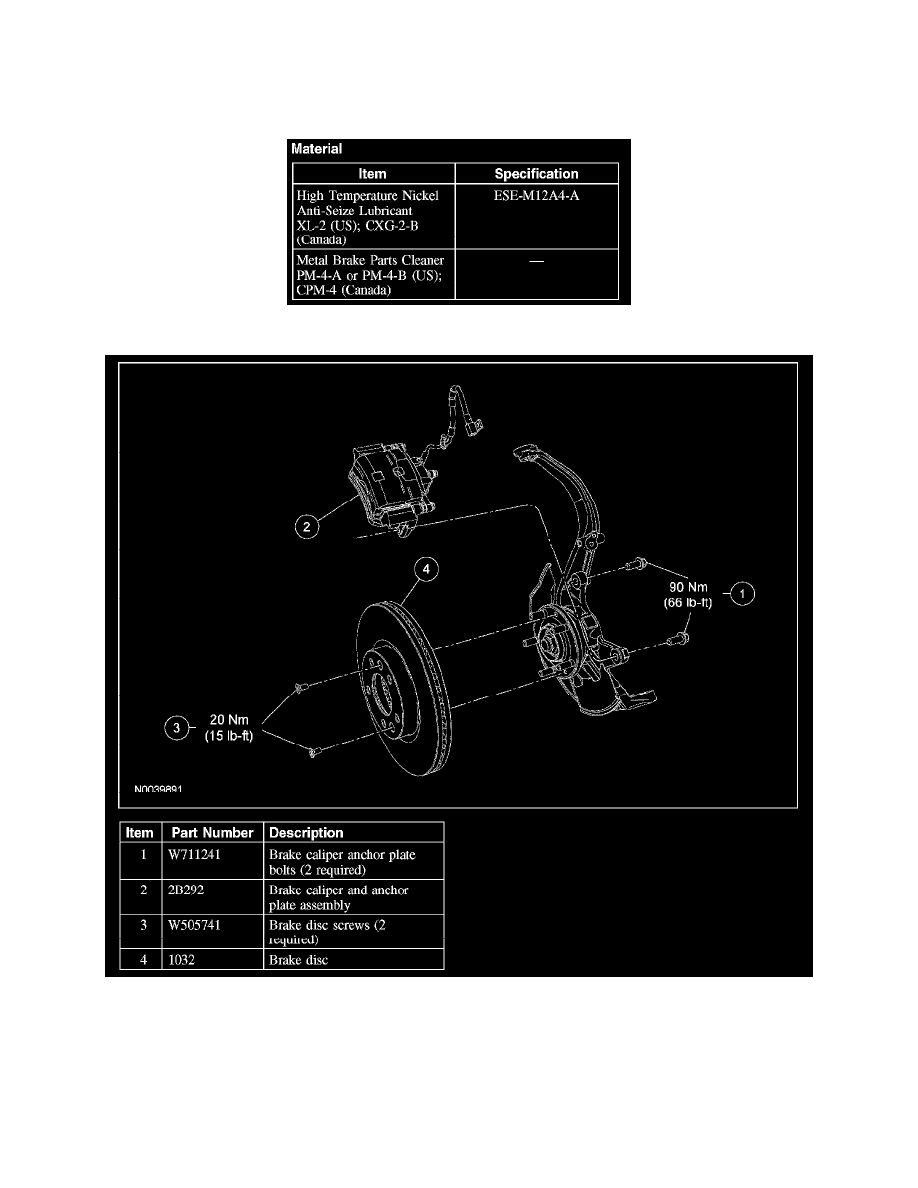

Brake Disc

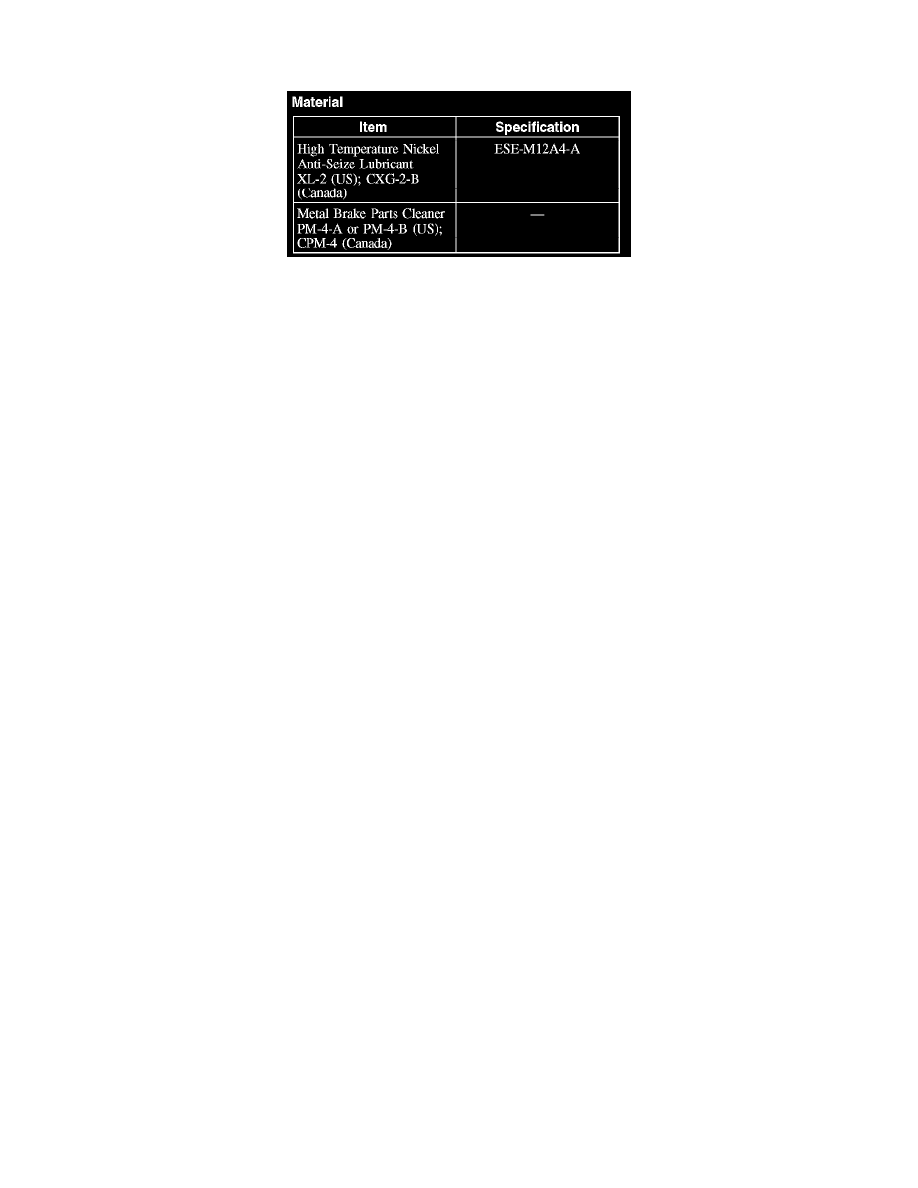

Material
Removal and Installation
1. Remove the wheel and tire.
2. CAUTION: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.
Remove the brake caliper anchor plate bolts and position the brake caliper, pads and anchor plate aside as an assembly.
^
Support the caliper using mechanic's wire.
^
To install, tighten to 90 Nm (66 lb-ft).
3. Remove the 2 brake disc screws.
