Milan AWD L4-2.3L (2008)
Instrument Panel, Gauges and Warning Indicators
Driver/Vehicle Information Display / Component Information

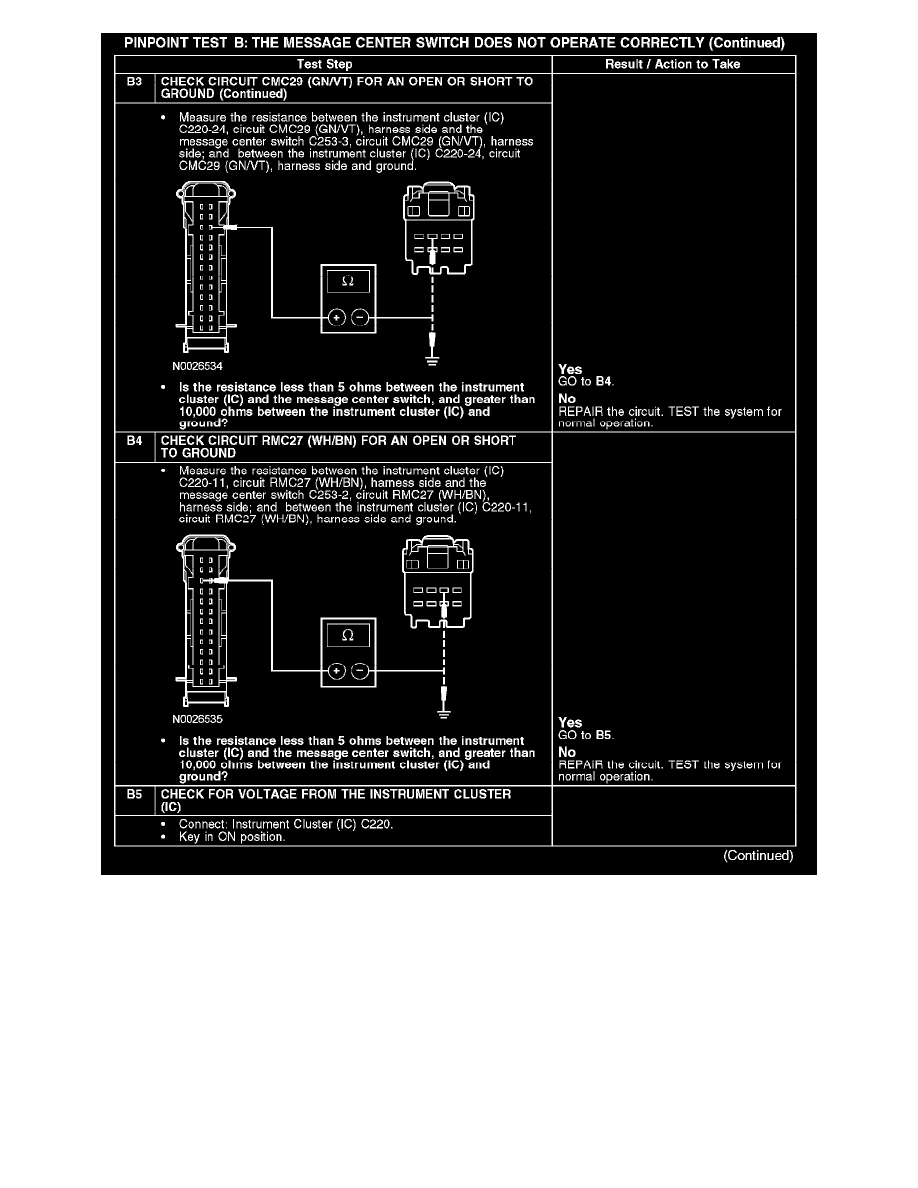

Testing and Inspection / Initial Inspection and Diagnostic Overview
Page 7821
Page 3
B3-B5
Instrument Panel, Gauges and Warning Indicators
Driver/Vehicle Information Display / Component Information
Testing and Inspection / Initial Inspection and Diagnostic Overview
Page 7821
